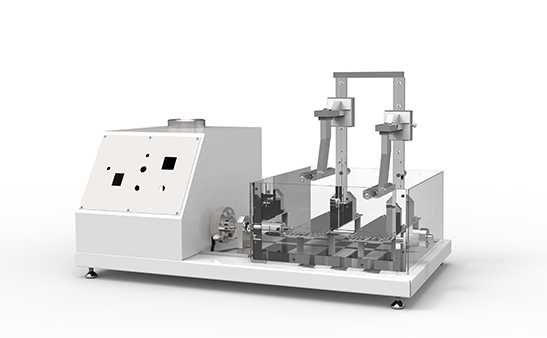

Product Information:The Cold Fold Tester is easy to operate. After setting the automatic counter, th
WhatsApp : +86 13816217984
Email : info@qinsun-lab.com
Finished shoes sole bending tester is used to test shoe stiffness/rigidity by flex shoe to certain angle by certain force.
The shoe bending stiffness test is a necessary test before outsole flexing test as per ISO 20344. Footwear which requires force (30±0.5)N to flex lower than 45° from horizontal is not suitable to test on outsole flexing tester.
ISO-20344. ISO 17707-2005. GB/T20991-2007. QB 2885-2007. AS/NZS 2210.2 section 8.4.1
This shoe rigidity is a shoe flexing tester. Clamp the shoe forepart on the machine and apply a force of (30±0.5)N and flex the sample at a speed of (100±10)mm/min until the force has been exerted. Then to measure the angle at this point.
| Model | UI-FT25 |
| Capacity | 200N |
| Speed | 100mm/min |
| Flex Plate | 315mm |
| Bending Position | 1/3 of finished shoe |
| Sample Size | French standard: Size 39. 42 ; British standard : Size 6. 8 |
| Angle Resolution | 0.1° |
| Test Required Force | 30N |
| Power | 1∮AC 220V 50/60HZ |
| Standard | ISO-20344, ISO 17707-2005. GB/T20991-2007. QB 2885-2007. AS/NZS 2210.2 section 8.4.1 |
