Textile Fabric Steam Shrinkage Tester

Precision Fabric Steam Shrinkage Tester for Textiles.

WhatsApp : +86 13816217984

Email : info@qinsun-lab.com

Content

Testing Standards:

ISO 3005: A standard method for determining dimensional changes in fabrics caused by loose steaming, applicable to woven fabrics but not natural shrinkage or ironing-induced changes.

BS 4323: A British standard specifying the measurement of fabric dimensional changes induced by free steam, analogous to ISO 3005.

NEXT TM 15: A proprietary test method (likely part of NEXT's quality control protocols) for evaluating textile abrasion resistance or specific performance characteristics.

M&S P8: An internal standard of Marks & Spencer (M&S) focusing on textile safety or performance requirements, potentially related to flammability or colorfastness.

IWTO 29-76: An International Wool Textile Organisation (IWTO) standard defining the measurement of dimensional changes in wool-containing fabrics after steaming.

Application:

This instrument is suitable for woven fabrics and knitted fabrics, and fabrics whose dimensions are easily changed by steaming. It is used to measure the dimensional change of the fabric after being subjected to steam under the condition of no force; this dimensional change has nothing to do with the wet expansion and felting shrinkage of the fabric in the wet treatment.

Technical characteristics:

Equipped with a timing sound alarm system to facilitate test operation.

The steam drum is provided with a door touch switch, which is more convenient and safe to operate

Product Information:

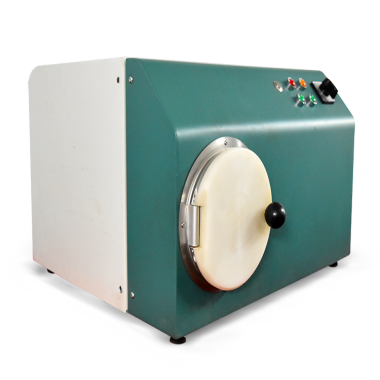

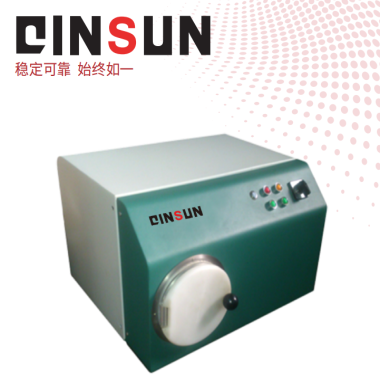

Steaming Cylinder determines the shrinkage of unstressed fabric samples subjected to steaming in a closed chamber with anintegral steam generator. Provided with a stainless steel fabric supporting frame to accommodate 4 samples and an automatic timer. The Steaming Stability Template is suitable for measuring relaxation shrinkage of testing fabrics using with steaming cylinders, and is used to mark the fabrics before testing using a benchmark of 250mm and to read shrinkage rate directly in percentage after steaming testing.

Technical Parameters:

1. Provided with a stainless steel fabric supporting frame;

2. 4 samples to test simultaneously;

3. Automatic timer;

4. Designed with integral steam generator, free from auxiliary steam generating device;

5. A Steaming Stability Template.

Optional accessories:

Steaming Stability Template

Yellow indelible Marking Pen

Qinsun Instruments Co., LTD is a professional laboratory testing instrument manufacturer in China,Have been focusing on laboratory instrument R&D more than 30 years and have rich industry experience,Based on international testing standards,We are also the instrument supplier for BV SGS laboratory,We provide one-stop solutions for lab instruments,Free Training and Turn-Key Service,Products exported all over the world,Offer 36 month warranty and are a trustworthy partner.
