Martindale Abrasion And Pilling TesterMartindale Abrasion & Pilling Tester. To determine the abrasio
WhatsApp : +86 13816217984
Email : info@qinsun-lab.com

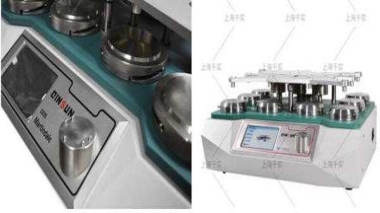

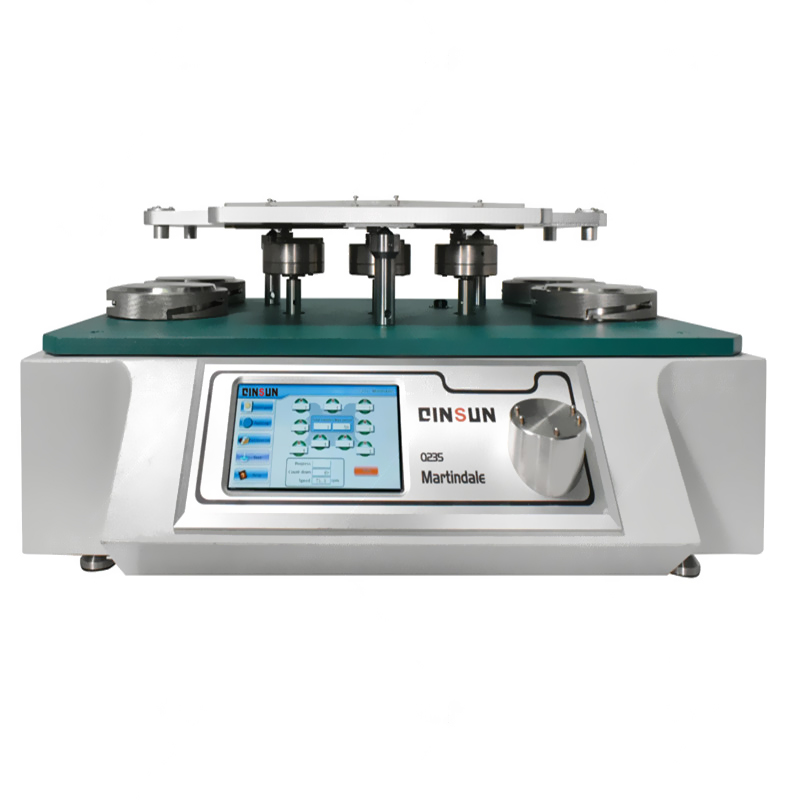

The Martindale Abrasion & Pilling Tester is designed to determine the abrasion resistance and pilling performance of all types of textile structures. Samples are rubbed against standard abrasives at low pressure in continuously changing directions, and the degree of abrasion or pilling is compared with standard reference values.
This tester is widely used in textile laboratories, quality control in textile manufacturing, research institutions, and university textile labs. It is suitable for testing fabrics, carpets, home textiles, apparel, and functional textiles for abrasion resistance and pilling performance.
The instrument complies with the following international and national standards:
ASTM D4970 – Standard Test Method for Pilling Resistance and Other Related Surface Changes of Fabrics
EN 16094 – Decorative laminates — Determination of scratch resistance
ASTM D4966 – Standard Test Method for Abrasion Resistance of Textile Fabrics (Martindale Abrasion Tester Method)
ISO 12945-2 – Textiles – Determination of the Abrasion Resistance of Fabrics by the Martindale Method
ISO 12947-1/12947-2 – Textiles – Determination of the Abrasion Resistance of Fabrics by the Martindale Method
ISO 5470-2 – Rubber, vulcanized or thermoplastic – Determination of abrasion
ISO 20344 – Personal protective equipment – Test methods for footwear
GB/T 4802.2 – Textile fabrics – Determination of abrasion resistance
GB/T 13775 – Textiles – Determination of pilling resistance
GB/T 21196.1/21196.2 – Test methods for abrasion and pilling of fabrics
BS 3424-24/5690 – Methods for testing textiles – Martindale method
BS EN 388/530/13770 – Protective gloves and textile tests
JIS L1096 8.17.5 Method E – Japanese standard for abrasion testing
FZ/T 20020 – Textile standards
M&S P17/P19/P19C – Martindale test methods
NEXT 18/18a/18b – Textile abrasion and pilling test
IWTO-40 – International Wool Textile Organisation standard
Woolmark TM 112/196 – Wool pilling and abrasion standards
| Parameter | Specification |
|---|---|
| Test positions | 4, 6, 8, or 9 stations |
| Sample holders | Removable for easy inspection without lifting motion plate |
| Test pressure | 9 kPa or 12 kPa (standard weights) |
| Test motion | Rotating and multi-directional friction |
| Test speed | 4 selectable speeds |
| Display | LCD touch screen |
| Programming | Preprogrammable batch and total counters, individual station counters |
| Interval function | Yes, interval time adjustable |
| Parking function | Yes, allows pausing test without losing count |
Standard sample holders
9 kPa and 12 kPa test weights
Touch screen controller
Programmable counters (batch, total, individual station)
