Industrial Powder Coating Ovens

Product details：

feature full-length supply ductwork and a combination airflow arrangement where the heated air is evenly delivered to both sides of the load, along the entire length of the heating chamber. This provides uniform air distribution throughout the entire work chamber, with no dead areas, resulting in a high-quality cure and reduced cure cycles. The industrial powder coating oven is designed with reduced impingement velocity of the recirculated air onto your parts, to prevent powder blow-off prior to gelling of the powder, reducing rework and saving you time and money. We can also offer a variable frequency drive (VFD) on the recirculation blower to reduce the airflow volume prior to gelling of the powder.

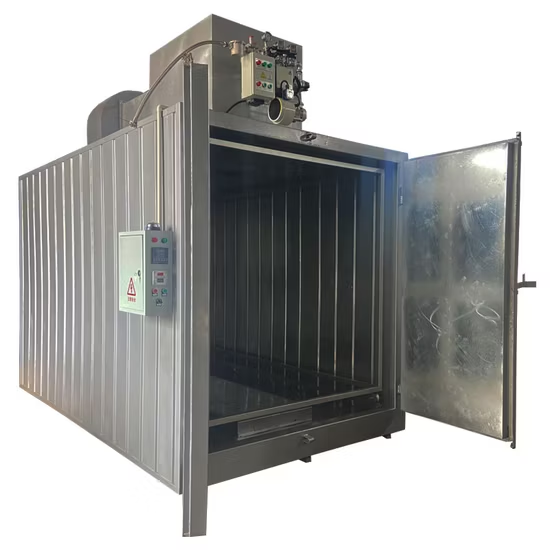

This powder coating oven with 4.5m depth is ideal for workparts with bigger length, such as frames, profiles, heated by electricity, while a 3kw circulation fan ensures uniform heat distribution through the entire dimension. It is also recommended to design with gas/diesel/LPG heating.

The powder coating batch oven offers best-in-class temperature uniformity, which is critical for consistent, high-quality results. If you have a uniformity requirement (+/-10F for example), we perform a multi-point temperature uniformity survey on the oven before shipment, to validate this tolerance. Our oven line includes a batch timer to sound an alarm (or turn off the heat) when the cycle is complete, which provides consistency from load to load.

Powder Coating Curing Furnace Specifications：

Different Models of Electric Powder Coating Oven Specifications:

Features：

Industrial Powder Coating Batch Oven features:

Fifty-seven (57) standard sizes and custom sizes available

Gas or electric heat

500° F maximum temperature rating

Standard combination airflow pattern. Horizontal airflow design also available

High capacity direct drive blowers

Air recirculation ductwork specifically designed for powder coating

Digital batch timer

NFPA, & NEC compliant

Benefits：

Heavy duty construction and quality components backed by our 5-Year warranty

Excellent uniformity and heating rates for consistent, high quality curing results

No powder blow-off, which reduces rework

Uniform heat distribution provides high quality finishes and optimum cure cycles

Powerful heating system provides fast heat-up so you can cure more loads per day

Direct drive recirculation blowers avoid drive belts that have to be maintained

Roof-mounted blowers conserve valuable floor space

Fully adjusted and factory tested PRIOR to shipment to reduce installation and start-up times

Precise Control

A simple PLC controllor provides high precision heating process, it offers all the features you need, allows you accurately to set the desired temperature and time, as well as an easy start of fan working. Once the curing time arrive, the oven will stop heating automatically. The controller also includes a variety of safety devices, such as alarm light and emergency stop buttons, etc.

Circulation Fan

A powerful fan cycles hot airs in the chamber making uniform heat distribution with a minimal temperature difference, in order to obtain a quality finish with even gloss and consistent colour.

Heating Insulation

Configured 100mm thick rockwool interlayer performs least temperature dropping, with galvanized innerwall that is heat-resistent and durable color steel outwall for long time use.

Easy Loading

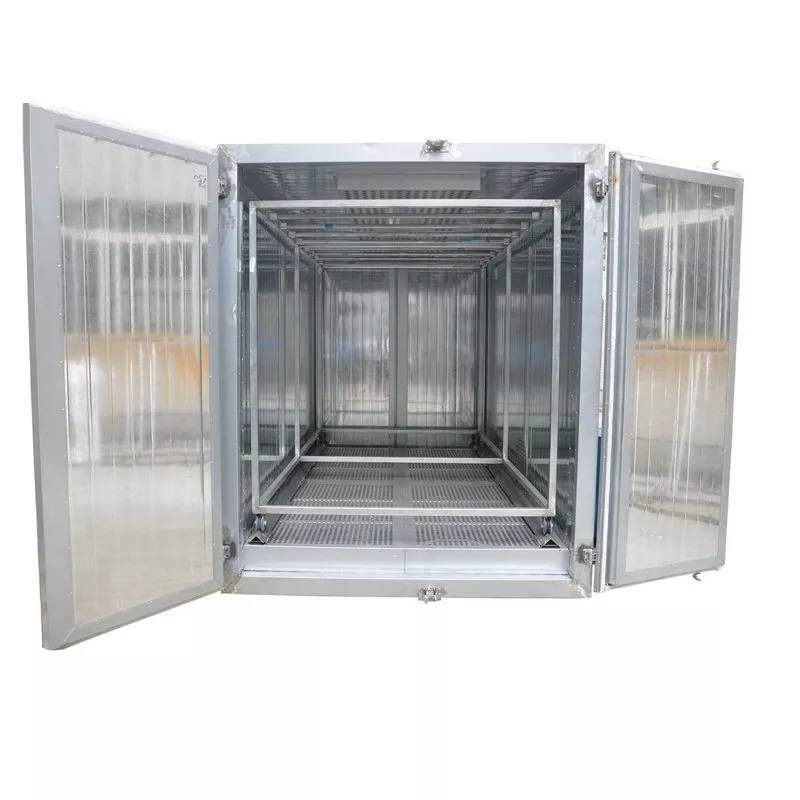

Supply with standard trolley and frames for easy carrying and loading even heavy elements. The transporting system will not pollute the inner chamber and ensure the purity of parts. Special trolley can be designed as customer required. Doors can be designed to open one side or two sides(pass through).

Industrial Powder Coating Batch Oven Options:

Doors on both ends; vertical lift doors

Notched doors for overhead trolley rail(s)

Data acquisition and recording

Ramp & soak temperature control with recipe storage

Guaranteed temperature uniformity & certification

Windows, interior lights, trapped personnel pull cord, and many other accessories

Many more options available upon request

Benefits of Inline Process Powder Coating Ovens:

High Throughput and Efficiency: Automated, continuous movement allows for large-scale, consistent production, reduced curing times compared to traditional paint drying

Uniform Curing and Quality: Precision-engineered airflow and temperature control ensure even heat distribution prevents under-curing or over-baking

Energy Savings and Sustainability: In-line ovens are more energy-efficient due to continuous operation and reduced heat loss between

Industrial Oven FAQs:

What industries need high-temperature industrial ovens?

High-temperature industrial heating ovens are commonly used in sectors like defense, energy, automotive and railway manufacturing. These industries require elevated curing temperatures, durable construction and code-compliant equipment. Qinsun ovens are built to handle demanding applications with strict temperature uniformity and safety standards.

In the aerospace industry, high temp ovens are often used to cure advanced composite materials under controlled heat and airflow. Automotive manufacturers use GFS ovens to heat-treat parts or cure coatings on drivetrain and underbody components. The railway industry requires large industrial ovens for finishing and thermal processing of long or bulky components. Meanwhile, the energy and defense sectors rely on Qinsun ovens for specialized applications such as degassing, powder curing or burn-off processes where safety, consistency and compliance are essential.

What is the difference between industrial curing ovens and drying ovens?

Industrial curing ovens are used to chemically cure coatings, adhesives or composite resins by applying controlled heat over a specific time cycle. This initiates a chemical reaction that hardens or sets the material, a common requirement in powder coating, composite manufacturing and adhesive bonding. Drying ovens, in contrast, are designed to remove moisture, water or solvents from parts before coating, assembly or further processing. Proper drying is essential to prevent defects like bubbling, poor adhesion or corrosion.

Qinsun Batch Process Ovens are engineered to handle both processes according to your workflow. With adjustable airflow systems and precise temperature control, these ovens can be used for preheating and drying raw parts or for curing coatings and resins at the later stages of production. This dual-purpose functionality makes GFS ovens a flexible solution for manufacturers with evolving or multi-step finishing operations.

What power source is used in Qinsun ovens?

All Qinsun industrial ovens use gas-powered burners with either natural gas or propane. This allows for rapid heat-up, stable temperature control and reduced cycle times. These gas-powered industrial heating ovens are built for high efficiency and long-term reliability.

What is the temperature range of Qinsun industrial ovens?

Qinsun industrial heating ovens are designed for flexibility. Batch Process and Batch Powder Ovens offer a temperature range of 300 degrees Fahrenheit to 500 degrees Fahrenheit, suitable for curing and drying. For more intensive applications, Batch Burn-Off Ovens reach 750 degrees Fahrenheit, with afterburner chambers capable of operating at 1,400 degrees Fahrenheit to 1,900 degrees Fahrenheit for safe disposal of contaminants.

What types of industrial ovens does Qinsun offer?

Qinsun offers three main types of industrial ovens: Batch Process Ovens for drying, curing, baking or preheating; Batch Powder Ovens for powder coating applications; and Batch Burn-Off Ovens for removing baked-on coatings from fixtures and parts. These industrial batch ovens are designed for consistent, high-quality results across a range of industries and production scales, including automotive, aerospace, agriculture, energy and defense. Whether you’re curing composite components, drying parts before assembly or removing coatings for reuse, our ovens are engineered to meet the exacting demands of industrial production.

Are Qinsun industrial ovens customizable?

Yes. Qinsun builds custom industrial ovens tailored to your specifications. From chamber size and layout to control systems, airflow and fuel source, we can configure a system that meets your specific regulatory, spatial and production needs. Custom options help ensure your oven fits seamlessly into your workflow and supports future scalability.

Our in-house engineering and design team includes licensed structural engineers, airflow specialists, mechanical and electrical engineers, PLC programmers and compliance experts, all working together to deliver reliable, code-compliant equipment. Using advanced tools like 3D modeling and Computational Fluid Dynamics (CFD) software, we simulate airflow and thermal performance before fabrication begins, saving time and improving results. GFS engineers can provide stamped drawings in all 50 U.S. states and Canada, and our team contributes to the development of key industry standards like NFPA 86. Whether you’re designing a large industrial oven or a highly specialized curing system, we bring precision engineering and deep experience to every custom project.

Do Qinsun ovens ensure consistent airflow and temperature?

Yes. Qinsun ovens use a uni-flow air distribution system that circulates heated air evenly across both sides of the chamber. Adjustable airflow tabs enable precise tuning, ensuring uniform heat distribution. This prevents cold spots, improves finish quality and supports efficient batch processing.

To further enhance consistency, airflow performance is carefully considered during the engineering phase. Our team uses modeling tools to optimize intake and exhaust placement, ensuring balanced temperature control across the entire chamber, even in large or custom builds.

How does Qinsun address safety in oven design and installation?

Safety is a core focus in every Qinsun oven. All ovens include airflow switches, interlocks and emergency shutdown systems to prevent overtemperature or fuel imbalances. Each unit is designed in accordance with NFPA 86, Electrical Testing Labs (ETL), OSHA, EPA and ICC standards. In fact, we maintain full code compliance across all product lines.

Our engineering team also contributes to the development of finishing safety standards, serving on the NFPA Technical Committee on Finishing Processes to help shape the standards that guide safe oven design.

During installation, Qinsun and our network of distributor partners provide site-specific support, including layout validation, safety zone planning and operator training. This checklist-based process ensures each oven is installed safely and runs within code.

Safety features on our products are important, too. For Batch Burn-Off Ovens, a secondary water suppression system and an afterburner rated up to 1,900 degrees Fahrenheit help neutralize contaminants safely.
