Bus Seat Tester-QINSUN

1. Function and Application

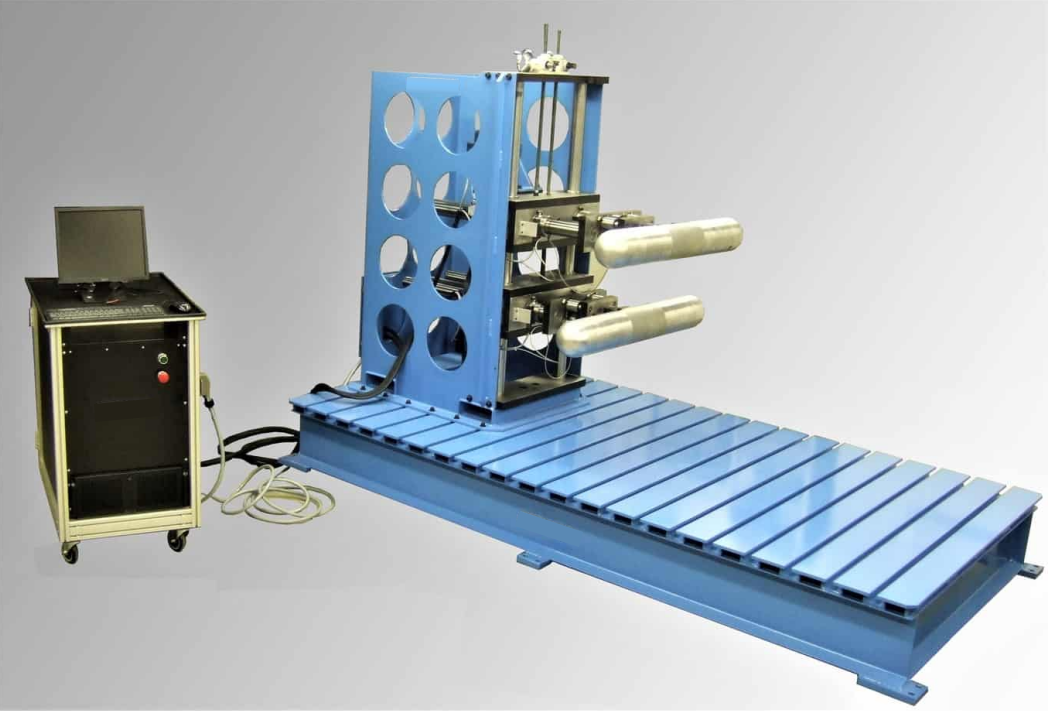

The Bus Seat Tester is designed to evaluate the durability, strength, and fatigue performance of bus seating systems in compliance with FMVSS 222 and NHTSA S5.1.3 / S5.1.4 standards.

It can be mounted directly to the customer’s existing bedplate or supplied with a dedicated base. All mechanical functions are fully electric, eliminating hydraulic systems, for precise, repeatable testing.

The system is ideal for manufacturers, quality control, and safety compliance laboratories, providing both static and dynamic load testing in tension and compression to simulate real-world usage and safety conditions.

2. Applicable Test Standards

NHTSA S5.1.3 – Seat Structural Strength Testing

NHTSA S5.1.4 – Seat Attachment Strength Testing

FMVSS 222 – School Bus Seating and Crash Protection Standards

OEM / Internal Durability Specifications – Configurable for specific test requirements

3. Technical Specifications

4. Features and Advantages

Electric-Only Design: Eliminates hydraulic systems for cleaner, more precise operation and reduced maintenance.

High Rigidity Construction: Solid steel shafting ensures minimal deflection during testing.

Adjustable Beams: Manual height adjustment allows flexible accommodation of different seat configurations.

Programmable Motion & Speed: Variable extension/retraction rates via user-friendly PC software.

Integrated Data Acquisition: Automatic plotting and recording of load and position for each test cycle.

Printable & Exportable Results: Graphs can be printed or saved for reporting and analysis.

Simple Setup & Operation: Intuitive software designed for users familiar with standard Windows PC environment.

Versatile Testing: Supports both static and dynamic load applications, including destructive testing scenarios.
