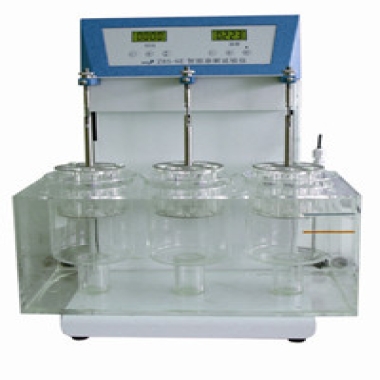

Disintegration Tester

Performance characteristics:

Meet all requirements of the disintegration time limit test of the Chinese Pharmacopoeia.

Three hanging baskets can be raised and lowered at the same time, and three groups of tests can be carried out at the same time.

Standardly equipped with 2.0mm and 0.425mm aperture stainless steel screens and required blocks.

The lifting and lowering movement of the hanging basket can be started or stopped by pressing the lifting key.

When the test timing reaches the set value, the hanging basket automatically stops at the highest position, which is convenient for loading and unloading the hanging basket and beaker.

Four-digit digital display time：

It has the functions of setting timing, automatic timing and timing reset.

Features

3 baskets movement in simultaneity

Stainless mesh aperture of 2mm/0.425mm and block

Basket ascension and descending control

Basket stop at top position when preset time is up, easy to take baskets and beakers out

4 digit display

Timing, counting and reset：

Specification

No. of Baskets: 3

Timing Range: ≤24hour

Display resolution: 1 minute

Bath Temperature: 5.0 to 40.0℃

Display resolution: 0.1℃

Accuracy: ±0.5℃

Stroke Frequency: 31 stroke/min

Accuracy: ±1

Stroke Height: 55mm

Accuracy: ±1mm

Running Noise: <60dB

Environment: Temperature 10℃ to 30℃  Humidity ≤75%
