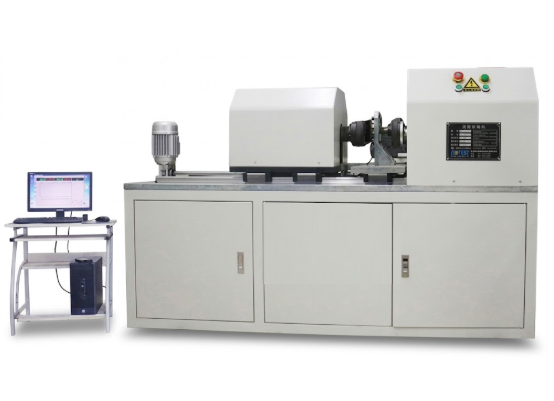

Drive Axle Torsion Testing Machine

The Drive Axle Torsion Testing Machine is a static torsional strength testing machine for three-wheel vehicle drive axle assemblies. It is suitable for static torsional strength, torsional strength, torsion angle, torque, torsional stiffness, angular stiffness, and other mechanical performance tests of three-wheel vehicle drive axles, low-speed truck drive axle assemblies, chain-drive shaft drive axles, and transmission-integrated drive axles.

Application

The Drive Axle Torsion Testing Machine is suitable for testing:

(1) Three-wheel vehicle drive axles

(2) Low-speed truck drive axle assemblies

(3) Chain-drive shaft drive axles

(4) Transmission-integrated drive axles

It can be used to evaluate:

(1) Static torsional strength

(2) Torsional strength

(3) Torsion angle

(4) Torque

(5) Torsional stiffness

(6) Angular stiffness

(7) Other related mechanical properties

Software Functions

(1) Windows-Based Chinese Test Software – Supports test data acquisition and processing.

(2) Real-Time Data Processing – Test data can be collected, calculated, processed, displayed, and printed in real time.

(3) Curve Traversal – Users can access individual points on the curve with the mouse to obtain relevant test data. The torque-torsion angle curve can show the torque-angle relationship at any point, while local sections can be enlarged or restored.

(4) Manual or Automatic Zeroing – The torque and angle measurement channels can be manually or automatically zeroed as required.

(5) Automatic Data Storage – Test conditions and test data can be automatically stored and recalled when required.

(6) Batch Testing – After test conditions are configured, multiple specimens can be tested successively. Test conditions, specimen parameters, test data, and results can be stored and recalled.

(7) Test Report Printing – Test reports can be printed after testing.

Parameters

Features

(1) Drive Axle Assembly Testing – Designed for static torsional performance testing of three-wheel vehicle and related drive axle assemblies.

(2) High Torque Capacity – Standard configurations include 5000 Nm, 10000 Nm, and 20000 Nm, with customization available.

(3) Multiple Mechanical Properties – Supports testing of static torsional strength, torque, torsion angle, torsional stiffness, and angular stiffness.

(4) Computer-Controlled Operation – Windows-based Chinese test software supports data acquisition, processing, storage, and report printing.

(5) Curve Analysis – Torque-torsion angle curves can be examined point by point, with local curve enlargement and restoration.

(6) Batch Testing – Test conditions and specimen data can be stored for successive testing of multiple specimens.

(7) Automatic Data Storage – Test conditions, data, and results can be automatically saved and recalled.
