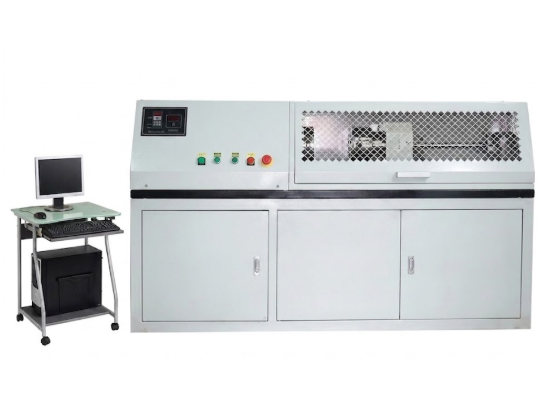

Crankshaft Connecting Rod Torsion Testing Machine

The Crankshaft Connecting Rod Torsion Testing Machine adopts computer automatic control and an imported servo motor for loading. Specimens are installed and connected through corresponding fixtures. Within the allowable torque range of the testing machine, it can perform static torsion tests on various shaft components, automotive rear axles, structural components, and various material specimens.

Application

The Crankshaft Connecting Rod Torsion Testing Machine can be used for static torsion testing of:

(1) Crankshaft connecting rods

(2) Various shaft components

(3) Automotive rear axles

(4) Structural components

(5) Various material specimens

Software Functions

(1) Windows-Based Chinese Test Software – Supports test data acquisition and processing.

(2) Real-Time Data Processing – Test data can be collected, calculated, processed, displayed, and test reports can be printed in real time.

(3) Curve Traversal – Individual curve data points can be accessed with the mouse to obtain various test data. The torque-torsion angle curve can show the torque-angle relationship at any point. Local sections of the curve can also be enlarged and restored.

(4) Manual or Automatic Zeroing – The torque and angle measurement channels can be manually or automatically zeroed as required.

(5) Automatic Data Storage – Test conditions and test data are automatically stored and can be recalled when needed.

(6) Batch Testing – After test conditions are set, a batch of specimens can be tested successively. Test conditions, specimen parameters, test data, and results can be stored and recalled without resetting the conditions for subsequent tests.

Parameters

Features

(1) Computer Automatic Control – The machine uses computer automatic control for the testing process.

(2) Servo Motor Loading – An imported servo motor is used for loading.

(3) Large Torque Capacity – Maximum torque is specified as ±5000 Nm.

(4) Large Test Space – The effective test space is 1500 mm.

(5) Curve Analysis – The software supports torque-torsion angle curve traversal and local curve enlargement.

(6) Batch Testing – Multiple specimens can be tested successively using stored test conditions.

(7) Automatic Data Storage – Test conditions and test data can be automatically stored and recalled.

(8) Report Printing – Test results can be processed and printed as reports.
