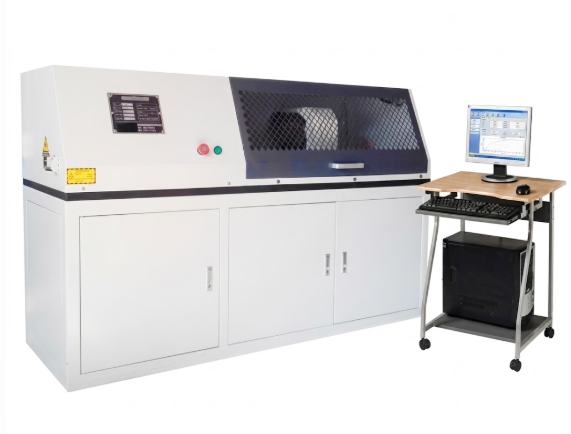

Welded Component Torsion Testing Machine

The Welded Component Torsion Testing Machine is mainly used for torsion testing of welded components, weld joint torque testing, and torsional performance testing of various accessories and components.

The tested specimen is installed between fixtures with adjustable spacing, allowing the machine to accommodate torsional mechanical performance testing of different specimens. The test bench uses computer-controlled operation and can collect torque, peak torque, angle, curves, and other test data. The display shows torque-time, torsion angle-time, and torque-torsion angle curves. Test data can be stored, retrieved, and printed as test reports.

Application

The Welded Component Torsion Testing Machine is mainly used for:

(1) Welded component torsion testing

(2) Weld joint torque testing

(3) Torsion testing of various accessories

(4) Material torsional performance testing

(5) Component torsional performance testing

(6) Torsional failure testing

(7) Torsional qualification testing

Test Functions

The machine can perform the following tests:

(1) Torsion angle testing of materials or components

(2) Torque testing of materials or components

(3) Curve analysis of materials or components

(4) Torsion time and speed testing

(5) Maximum torque and peak torque testing

(6) Specified-cycle testing

(7) Constant-torque testing

(8) Destructive testing

(9) Qualification testing

Standards

GB/T 2611 — General Requirements for Testing Machines

Parameters

Features

(1) Welded Component Testing – Designed for torsional mechanical performance testing of welded components and weld joints.

(2) Adjustable Fixtures – The fixture spacing can be adjusted according to different specimen dimensions.

(3) Computer-Controlled Operation – The test bench uses computer-controlled operation for data acquisition and test management.

(4) Multiple Test Parameters – Torque, peak torque, angle, test speed, test time, and other parameters can be collected and analyzed.

(5) Multiple Test Curves – The system can display torque-time, torsion angle-time, and torque-torsion angle curves.

(6) Different Test Modes – Supports specified-cycle testing, constant-torque testing, destructive testing, and qualification testing.

(7) Stepless Speed Adjustment – The torsion speed can be continuously adjusted within the specified range.

(8) Overload Protection – The testing machine is equipped with an overload protection function.
