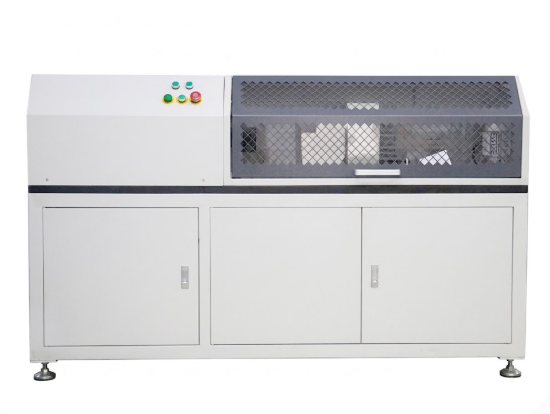

Threaded Component Torsion Testing Machine

The Threaded Component Torsion Testing Machine is mainly used for torsion testing of threaded components, thread torque testing, and torsional performance testing of components.

The tested specimen is installed between fixtures with adjustable spacing, allowing the machine to accommodate torsional mechanical performance testing of different specimens. The test bench uses computer-controlled operation and can collect torque, peak torque, angle, curve, and other test data. The display shows torque-time, torsion angle-time, and torque-torsion angle test curves. Test data can be stored, retrieved, and printed as test reports.

Application

The Threaded Component Torsion Testing Machine is mainly used for:

(1) Threaded component torsion testing

(2) Thread torque testing

(3) Component torque testing

(4) Threaded part torsional mechanical performance testing

(5) Component torsional performance testing

(6) Torsion testing of different threaded specimens

Standards

GB/T 2611 — General Requirements for Testing Machines

Parameters

Features

(1) Threaded Component Testing – Designed for torsion and torque testing of threaded components and related parts.

(2) Adjustable Fixture Spacing – The tested specimen is installed between fixtures with adjustable spacing to accommodate different specimens.

(3) Computer-Controlled Operation – The test bench uses computer-controlled operation for test control and data acquisition.

(4) Multiple Data Acquisition – Torque, peak torque, angle, curves, and other test data can be collected.

(5) Test Curve Display – The system displays torque-time, torsion angle-time, and torque-torsion angle curves.

(6) Stepless Speed Adjustment – The torsion speed can be continuously adjusted within the specified control range.

(7) Overload Protection – The testing machine is equipped with an overload protection function.
