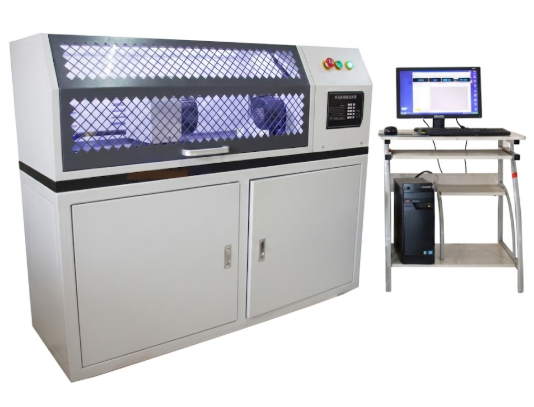

The One-Way Clutch Torsion Testing Machine is suitable for torsion testing of various one-way clutch
WhatsApp : +86 15601902607
Email : info@qinsun-lab.com

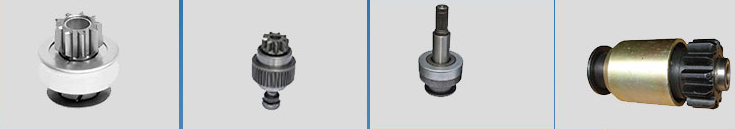

The One-Way Clutch Torsion Testing Machine is suitable for torsion testing of various one-way clutches, including automotive one-way clutches, starter one-way clutches, and motorcycle one-way clutches.
The test specimen is installed between fixtures with adjustable spacing, allowing the machine to accommodate torsional mechanical performance testing of different specimens. The machine uses computer-controlled operation and can collect torque, peak torque, angle, curve, and other test data. Test data can be stored, retrieved, and printed as test reports.
The One-Way Clutch Torsion Testing Machine is mainly used for:
(1) Automotive one-way clutch torsion testing
(2) Starter one-way clutch torsion testing
(3) Motorcycle one-way clutch torsion testing
(4) One-way clutch torque and peak torque testing
(5) One-way clutch torsion angle testing
(6) Torsional mechanical performance evaluation
GB/T 2611 — General Requirements for Testing Machines
| Parameter | Specification |
|---|---|
| Maximum Test Torque | 100, 200, 500, 1000, 2000, 5000, 10000 N·m |
| Test Travel | 300 / 500 mm |
| Testing Machine Class | Class 0.5 |
| Torque Measurement Range | 1%–100% FS |
| Torque Minimum Resolution | 0.01 / 0.1 N·m |
| Angle Resolution | 0.01° |
| Maximum Torsion Angle | 0–Unlimited |
| Test Speed | 0.1–720°/min, customizable |
| Angle Indication Error | < ±0.5% |
| Angle Repeatability Error | < 0.5% |
| Test Force Indication Error | < ±0.5% |
| Test Force Repeatability Error | < 0.5% |
| Test Speed Accuracy | Better than ±1% of indicated value |
| Torsion Fixtures | Three-jaw chuck type, bidirectional top-tightening type |
| Appearance | Complies with GB/T 2611 requirements |
| Torque Loading Direction | Both directions |
| Torsion Fixtures | Standard set |
| Power Supply | 220 V, 50 Hz |
| Applicable Products | Automotive one-way clutches, starter one-way clutches, motorcycle one-way clutches, etc. |
(1) Dedicated One-Way Clutch Testing – Suitable for torsion testing of automotive, starter, and motorcycle one-way clutches.
(2) Adjustable Fixture Spacing – The test specimen is installed between fixtures with adjustable spacing to accommodate different specimens.
(3) Computer-Controlled Operation – Supports computer-controlled test operation and data acquisition.
(4) Multiple Data Acquisition – Can collect torque, peak torque, angle, curves, and other test data.
(5) Data Storage and Reporting – Test data can be stored, retrieved, and printed as test reports.
(6) Bidirectional Torque Loading – Supports torque loading in both directions.
