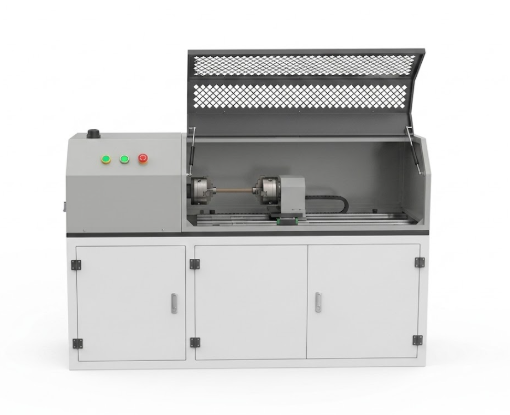

The Gear Torque Testing Machine is designed to evaluate the torque, torsional strength, and torsiona
WhatsApp : +86 15601902607
Email : info@qinsun-lab.com
The Gear Torque Testing Machine is designed to evaluate the torque, torsional strength, and torsional performance of gears and related transmission components. The machine applies controlled rotational torque to the specimen while measuring torque and torsion angle, providing test data for product development, performance evaluation, and quality inspection.
The machine is suitable for testing:
(1) Spur gears
(2) Helical gears
(3) Transmission gears
(4) Automotive gears
(5) Gearbox components
(6) Mechanical transmission components
(1) GB/T 2611 — General Requirements for Testing Machines
| Parameter | Specification |
|---|---|
| Machine Configuration | Horizontal |
| Testing Machine Class | Class 1 |
| Torque Measurement Range | 1% FS–100% FS |
| Torque Indication Error | ≤ ±1% |
| Torque Repeatability Error | ≤ 1% |
| Angle Resolution | 0.01° |
| Angle Measurement Accuracy | ≤ ±1% |
| Fixtures | Three-jaw chuck; bidirectional top-clamping fixture |
| Test Space | 300 mm / 500 mm, customizable |
| Torsion Speed | 0.01–5 r/min, stepless adjustable |
| Speed Control Accuracy | ≤ ±1% |
| Power Supply | 220 V, 50 Hz |
| Safety Protection | Overload protection |
| Appearance | Complies with GB/T 2611 |
| Completeness | Complies with applicable requirements |
(1) Accurate Torque Measurement – Measures the torque applied to the gear during torsional testing.
(2) Torsion Angle Measurement – Records the torsion angle corresponding to the applied torque.
(3) Stepless Speed Control – Test speed can be continuously adjusted according to testing requirements.
(4) Horizontal Structure – Provides convenient specimen installation and fixture adjustment.
(5) Multiple Fixture Options – Three-jaw chuck and bidirectional top-clamping fixtures are available for different gear configurations.
(6) Customizable Test Space – The distance between fixtures can be adjusted or customized according to specimen dimensions.
(7) Overload Protection – Helps protect the testing machine and specimen during abnormal loading conditions.
