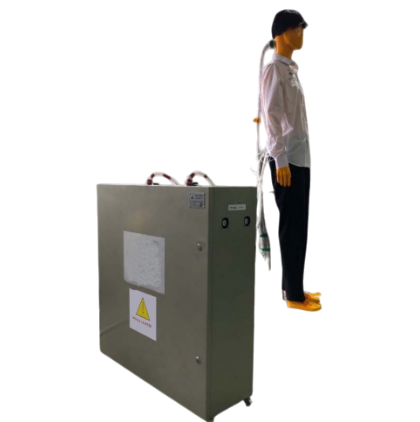

The 16-Segment Heated Thermal Manikin (Dry Type) is a precision anthropomorphic measurement system designed to simulate human body heat under controlled environmental conditions. By reproducing realistic human surface temperature distribution without breathing or sweating functions, the system provides reliable thermal response data for evaluating clothing insulation, indoor environments, HVAC airflow performance, and protective equipment. It is suitable for laboratory testing, academic research, and engineering verification where stable and repeatable human-equivalent heat output is required.
The 16-Segment Heated Thermal Manikin is used in the following application areas:
(1) Cleanroom airflow evaluation and contamination risk assessment
(2) HVAC research, teaching, and indoor thermal comfort studies
(3) Thermal insulation testing of workwear, protective clothing, and medical garments
(4) Simulation of human heat sources in vehicle interiors, buses, trains, ships, and submarines
(5) Aircraft, spacecraft, and cabin thermal environment studies
(6) Hospital operating room temperature control and patient thermal protection testing
(7) Occupational safety and thermal stress evaluation in controlled environments
The system is designed and manufactured with reference to the following international and national standards:
(1) ISO 14644-1 / ISO 14644-3 – Cleanrooms and associated controlled environments
(2) DIN 1946-4 – Ventilation and air-conditioning systems in healthcare facilities
(3) ISO 14505-2 – Determination of thermal insulation using a thermal manikin (analogous method)
(4) ASTM F1291 – Thermal insulation of clothing using a heated manikin
(5) EN 14058 – Protective clothing against cool environments (reference testing)
(6) GB/T 18883-2020 – Indoor air quality standard
(7) GB/T 50785-2012 – Cleanroom design and testing for hospitals
(8) GB 50333-2013 – Technical code for hospital HVAC system design
(9) GB/T 4249-2019 – Indoor thermal environment impact on human body
(10) YY/T 0287-2009 – Thermal performance evaluation of medical protective clothing
| Component | Technical Parameter |
|---|---|
| Manikin body | 16 independent heating zones (head, torso, arms, legs); glass fiber reinforced resin; standing or sitting posture; customizable Asian or European body shape |
| Heating system | Nickel-chromium heating wires; PT100 B-class sensors; surface temperature 32–37°C (33 ± 0.5°C typical); center temperature 37 ± 0.1°C |
| Zone uniformity | Maximum temperature difference between zones ≤ 1.0°C |
| Control system | 16-segment PID temperature control; 2 × 8-channel boards; automatic PID tuning |
| Control box | 780 × 780 × 260 mm; mobile base with brakes; aircraft-style quick connectors |
| Heat output | 70–100 W per manikin, adjustable |
| Surface material | Smooth, non-particle shedding, suitable for cleanroom use |
| Operating environment | Temperature 10–40°C; humidity 15–95% RH |
| Power supply | AC 220–240 V, 50 Hz |
| Power consumption | Peak ≤ 1200 W; steady-state heat flux 0–300 W/m² |
| Manikin height | Approx. 180 cm (standing posture) |
| Manikin weight | Approx. 45 kg |
| Optional customization | Child or infant manikins; individual body parts; lying posture patient simulation |
(1) Sixteen independent heating zones for stable and uniform heat distribution
(2) Dry-type design without sweating or breathing for simplified operation and cost efficiency
(3) High-precision temperature control using dedicated PID regulation
(4) Adjustable surface and core temperature for various thermal simulation scenarios
(5) Flexible posture options including standing, sitting, or lying configurations
(6) Cleanroom-compatible surface with low particle emission
(7) Quick-connect cabling and mobile control unit for convenient installation
(8) Compatibility with expanded GB/T and YY/T standards for medical and HVAC testing
(1) 16-segment heated thermal manikin body
(2) Dedicated PID temperature control system
(3) Aircraft-style quick-connect cables
(4) Control and monitoring software
(5) Optional child, infant, or lying-position manikin configurations
(1) Place the manikin in the required posture and test environment
(2) Connect heating zones and control system using quick-connect cables
(3) Set target surface temperature and control parameters
(4) Allow the system to reach thermal steady state
(5) Conduct airflow, insulation, or thermal environment measurements
(6) Record power consumption, surface temperature, and environmental data
(1) Periodically verify temperature sensor calibration
(2) Inspect heating wires and connectors for damage
(3) Keep the manikin surface clean to maintain cleanroom compatibility
(4) Check control box ventilation and electrical connections
(5) Store the system in a dry environment when not in use
1.What is this product?
This product is a 16-zone heated thermal manikin designed to simulate human body heat for thermal environment and clothing insulation testing.
2.What is this product used for?
It is used to evaluate HVAC airflow, cleanroom performance, clothing thermal insulation, vehicle cabin environments, and medical or occupational thermal conditions.
3.Why is this product important?
It provides repeatable, human-equivalent heat output, enabling objective evaluation of thermal comfort, insulation performance, and environmental safety without involving human subjects.
4.What industries is this product suitable for?
HVAC engineering, cleanroom design, automotive and aerospace research, medical facility testing, universities, and occupational safety laboratories.
5.What types of this product are available?
Standard adult dry-type manikins, customized Asian or European body shapes, child or infant manikins, individual body-part manikins, and lying-position patient simulation models.
