The Male Side Impact Dummy (RE Type) is a high-fidelity side impact test dummy designed based on 50t
WhatsApp : +86 15601902607
Email : info@qinsun-lab.com

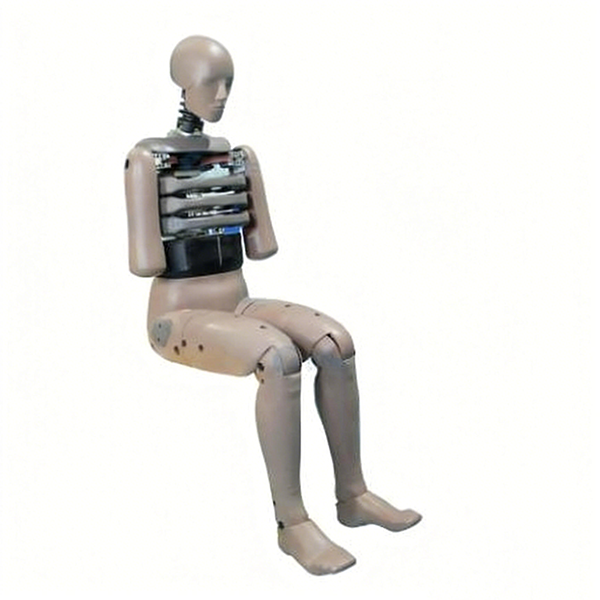

The Male Side Impact Dummy (RE Type) is a high-fidelity side impact test dummy designed based on 50th percentile adult male anthropometric data. It is used to simulate biomechanical responses of occupants during vehicle side collisions, accurately representing chest, pelvis, and lower limb acceleration, load, and displacement. The dummy features an enhanced rib structure with a rib extension mechanism, enabling realistic interaction with seats and door panels. It is suitable for regulatory testing, NCAP evaluation, and vehicle passive safety development.
The Male Side Impact Dummy (RE Type) is primarily used in the following testing and research fields:
(1) Side impact occupant protection assessment for passenger cars and commercial vehicles;
(2) Evaluation of vehicle side structures (doors, B-pillars, sill beams, etc.) crashworthiness;
(3) Verification of side airbags, curtain airbags, and occupant restraint systems;
(4) Regulatory certification and consistency verification tests;
(5) Side impact safety development for new and modified vehicle models;
(6) Research on lateral protection performance of automotive components (seats, interior panels, energy-absorbing structures);
(7) Automotive safety research and university laboratory experiments.
(1) GB/T 11551 – Protection of occupants in frontal and side collisions
(2) GB 14166 – Motor vehicle seat belts and restraint systems
(3) FMVSS 214 – Side impact protection
(4) UNECE R95 – Lateral collision protection
(5) UNECE R135 – Pole side impact
(6) SAE J1727 – Side impact dummy performance specification
(7) ISO 15830 – Road vehicles – Side impact dummy – Calibration
(8) Euro NCAP – Side impact test protocol
Dimensional Data
| No. | Item | Dimension (mm) |
|---|---|---|
| 1 | Sitting height | 909 ±9 |
| 2 | Seat to shoulder | 565 ±7 |
| 3 | Seat to bottom of thorax box | 351 ±5 |
| 4 | Seat to hip joint (bolt center) | 100 ±3 |
| 5 | Foot to seat height (sitting) | 442 ±9 |
| 6 | Head width | 155 ±3 |
| 7 | Shoulder breadth | 470 ±9 |
| 8 | Chest width | 327 ±5 |
| 9 | Abdomen width | 280 ±7 |
| 10 | Pelvis width | 366 ±7 |
| 11 | Head depth | 201 ±5 |
| 12 | Chest depth | 267 ±5 |
| 13 | Abdomen depth | 199 ±5 |
| 14 | Pelvis depth | 240 ±5 |
| 15 | Rear pelvis to hip joint (bolt center) | 155 ±5 |
| 16 | Rear pelvis to front knee | 606 ±9 |
Mass Distribution
| Component | Mass (kg) |
|---|---|
| Head | 4 ±0.05 |
| Neck | 1 ±0.05 |
| Thorax | 22.4 ±1 |
| Left arm | 1.3 ±0.1 |
| Right arm | 1.3 ±0.1 |
| Abdomen | 5 ±0.25 |
| Pelvis | 12 ±0.6 |
| Left leg | 12.7 ±0.6 |
| Right leg | 12.7 ±0.6 |
| Total | 72.4 ±1.2 |
Sensor Configuration
| Location | Sensor Type | Channels |
|---|---|---|
| Head | Accelerometer | 3×1 |
| Head | Gyroscope | 3×1 |
| Upper Neck | 6-channel load cell | 1×6 |
| Lower Neck | 6-channel load cell | 1×6 |
| Shoulder | 3-channel load cell | 1×3 |
| Thorax | Tilt sensor | 1×2 |
| Torso | 4-channel load cell | 1×4 |
| Thoracic T1 | Accelerometer | 1×3 |
| Thoracic T12 | Accelerometer | 3×1 |
| Ribs | Accelerometer | 3×1 |
| Ribs | Linear potentiometer | 3×1 |
| Thoracic T12 | 4-channel load cell | 1×4 |
| Abdomen | Single-channel load cell | 3×1 |
| Lower lumbar | 3-channel load cell | 1×3 |
| Pelvis | Tilt sensor | 1×2 |
| Pubis | Single-channel load cell | 1×1 |
| Sacrum | Accelerometer | 3×1 |
| Thigh | 6-channel load cell | 1×6 |
(1) Designed based on 50th percentile adult male anthropometry for high biofidelity;
(2) Enhanced rib structure with rib extension mechanism for realistic chest lateral compression and displacement;
(3) Accurate interaction with seats and door panels;
(4) Supports multi-channel force, acceleration, and displacement measurement;
(5) Stable structure suitable for regulatory and high-repetition tests;
(6) Compatible with multiple international side impact regulations and NCAP protocols.
(1) High-precision accelerometer set
(2) Load cell and displacement sensor modules
(3) Rib extension mechanism
(4) Replaceable limb modules (arms, legs, torso)
(5) Data acquisition interfaces and calibration tools
(6) Dedicated transport frame and mounting base
(1) Fully calibrate the dummy according to relevant regulations or test protocols;
(2) Install sensors, ensuring correct position and orientation;
(3) Adjust dummy posture, seat position, and restraints according to specific regulations;
(4) Prevent joint lock-up or cable tension during testing;
(5) Inspect ribs, sensors, and connectors after impact to prevent cumulative damage.
(1) Regularly inspect ribs, thorax, and pelvis for cracks or damage;
(2) Check sensor connections and data acquisition interfaces;
(3) Lubricate and secure detachable limb and joint modules;
(4) Keep dummy surfaces clean and free of corrosive agents;
(5) Store in controlled environment avoiding high humidity, temperature, and UV exposure;
(6) Record usage and maintenance history after each test.
The Male Side Impact Dummy (RE Type) is a critical tool for high-fidelity side impact testing. Its enhanced rib structure, modular design, and multi-channel sensor layout allow it to realistically reproduce the biomechanical responses of a 50th percentile adult male during side collisions. It provides reliable data for regulatory compliance, NCAP evaluation, and vehicle passive safety development.
(1) What is this product?
The Male Side Impact Dummy (RE Type) is a high-fidelity side impact test dummy representing a 50th percentile adult male, used for vehicle side impact safety assessment.
(2) What is this product used for?
It evaluates occupant protection during side collisions, tests side airbags and door interactions, and verifies compliance with side impact regulations and NCAP protocols.
(3) How does this product work?
It simulates human skeletal, joint, and soft tissue biomechanics, producing acceleration, load, and displacement responses that are measured via sensors during impact.
(4) Why is this product important?
It quantitatively evaluates the effectiveness of vehicle side protection systems, ensuring safety designs meet regulatory standards and optimize occupant protection.
(5) What industries is this product suitable for?
Automotive OEMs, component suppliers, third-party testing labs, research institutes, and university safety laboratories.
