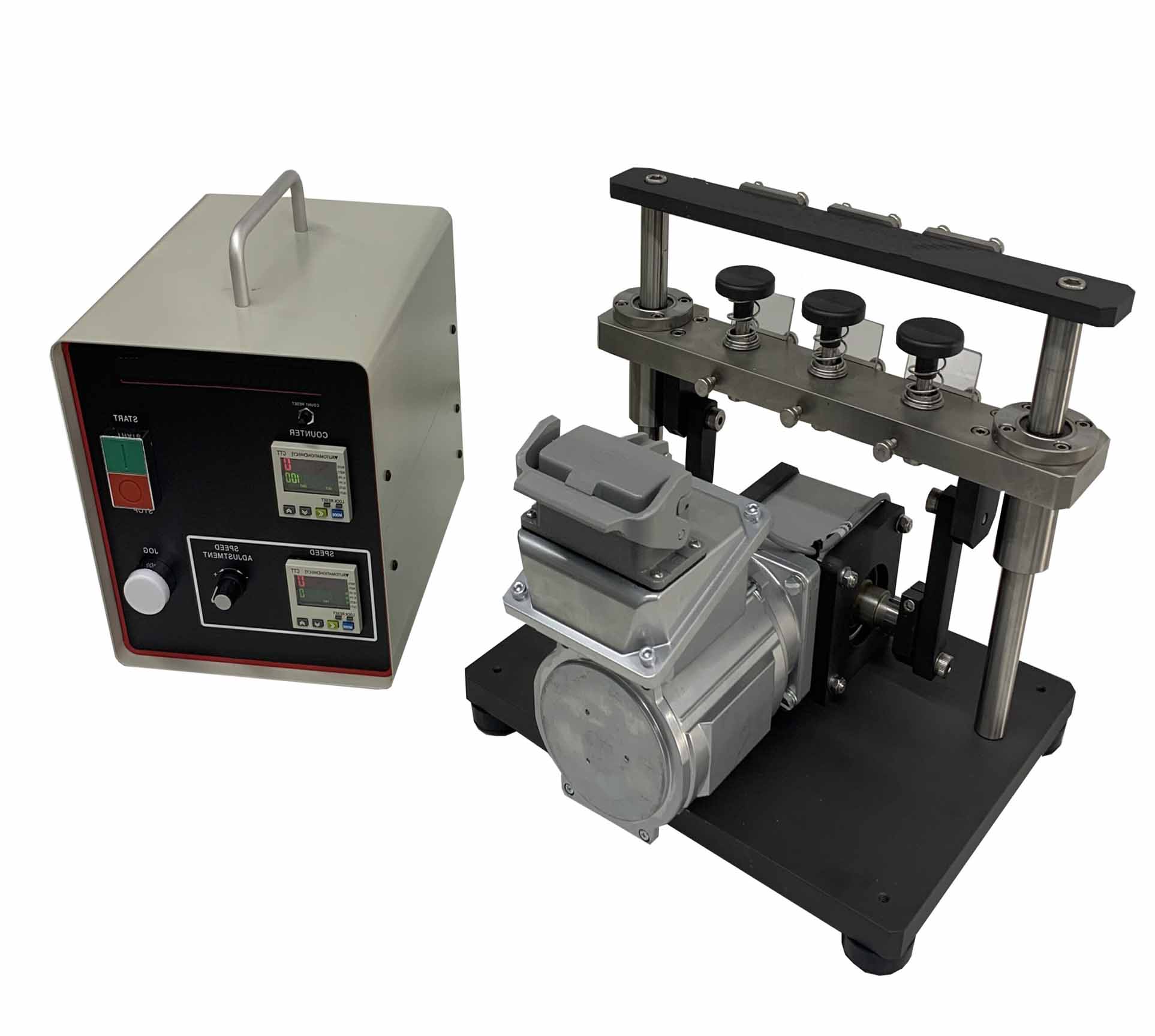

Cold Pinch Fold Fabric Tester

1. Function and Application

The Cold Pinch Fold Fabric Tester is designed to evaluate the resistance of soft trim materials, fabrics, and leather to cold cracking. It is primarily used in the automotive and materials testing industries to simulate cold environmental conditions and determine how materials withstand repeated folding or pinching stresses at low temperatures.

It is suitable for Chrysler and Toyota testing protocols, ensuring compliance with industry-specific cold flexing requirements.

2. Applicable Test Standards

Chrysler LP-463KB-28-01 Method C

Toyota TSL5100G Sec. 4.29 and 4.29.2

3. Technical Specifications

4. Features and Advantages

Cold-Environment Testing: Accurately evaluates material performance at temperatures down to -20°C.

Programmable Soak and Test Control: Ensures consistent testing conditions and repeatable results.

Remote Control Design: Keeps sensitive electronics outside the cold chamber, protecting them from low temperatures.

Adjustable Load and Pinch Height: Provides precise control for compliance with multiple standards.

Durable Construction: Aluminum and stainless steel components resist corrosion and wear.

Flexible Integration: Can be used with chest-type freezers or other cold chambers; remote thermocouple ensures accurate temperature monitoring.

High Accuracy Bearings: Ball and needle bearings reduce friction and ensure smooth operation.

User-Friendly Operation: Programmable count-up controller and adjustable jog/test speed simplify testing setup.
