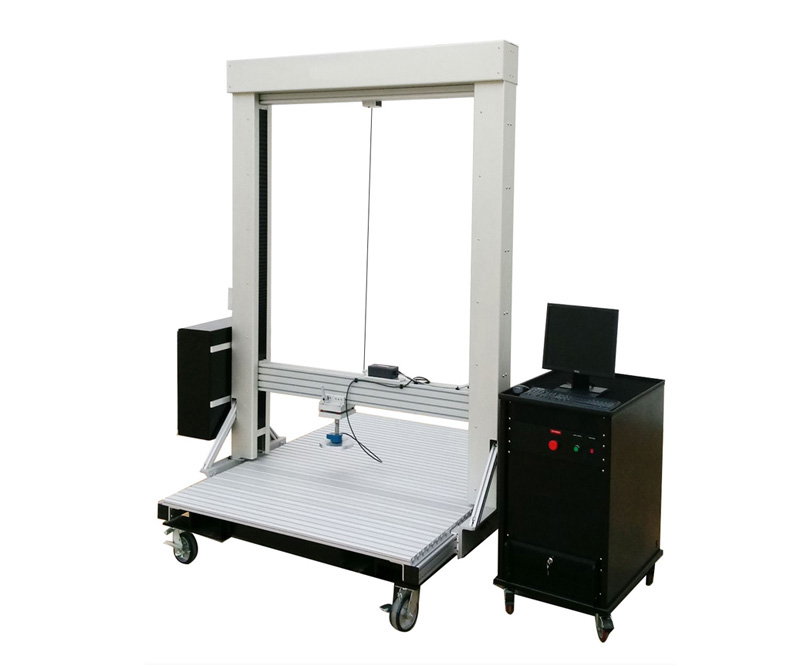

PC UTM XY GANTRY

1. Product Function and Application

The PC UTM XY Gantry is a programmable 4-axis universal test machine (UTM) designed for precise tension and compression testing across multiple specimens or positions.

Its XY gantry system allows sequential positioning of the actuator to repeat tests at specific locations, enabling high-throughput material testing.

The machine is ideal for testing foam, textiles, leather, plastics, adhesives, and other materials that require complex multi-point testing or automated repeatable procedures.

2. Applicable Test Standards

3. Technical Specifications

4. Product Advantages and Features

High-precision positioning – 4-axis gantry allows programmable sequential testing and repeatable reference positions.

Versatile testing modes – Supports both tension and compression testing for multiple materials.

Automated data calculations – Calculates Support Factor and Ultimate Elongation automatically in accordance with ASTM D3574-11 standards.

Customizable – Load cell sizes, actuator strokes, cycle rates, and indenter types can be tailored to specific testing needs.

Durable construction – Solid aluminum and stainless steel components ensure long-term reliability.

Operator safety – Emergency stop button prevents accidents during testing.

Expandable software – Proprietary software supports standard operations; custom software available for advanced testing workflows.

High throughput – Multi-position gantry system allows efficient testing across multiple specimen points without manual repositioning.
