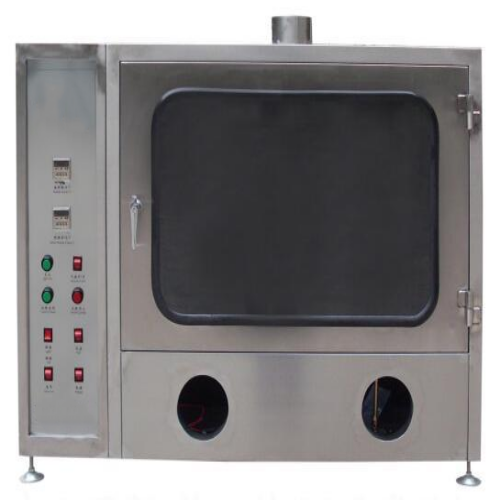

Automotive Wire Combustion Tester

The Automotive Wire Combustion Tester is designed to evaluate the flame resistance and burning performance of automotive wires and cables. It ensures compliance with international standards and helps verify wire safety under fire exposure conditions.

Application

(1) Automotive wire harnesses – assess flame resistance for vehicle safety.
(2) Low-voltage electrical cables – verify compliance with combustion standards.
(3) R&D laboratories – evaluate new wire materials for fire safety.
(4) Production quality control – ensure each batch meets flammability requirements.
(5) Certification testing – for ISO, SAE, DIN, and QC/T compliance verification.

Standards

(1) QC/T703-2005 – Automotive electrical wire flame resistance standard
(2) SAE J1128-2005 – Automotive wire flammability test
(3) DIN 72551 – Wire and cable combustion test
(4) ISO 6722 – Road vehicle electrical cables flame resistance

Parameters

Features

(1) Dual testing modes: vertical and horizontal flame tests.
(2) Automatic ignition and precise flame exposure time.
(3) High-precision temperature measurement ensures accurate monitoring of flame conditions.
(4) Ventilation system safely removes combustion gases.
(5) Stainless steel enclosed chamber ensures safe operation and easy cleaning.
(6) Compliant with multiple international standards (QC/T, SAE, DIN, ISO).

Accessories

(1) Bunsen burner with adjustable flame
(2) K-type thermocouple and TES-1310 temperature meter
(3) Horizontal combustion fixture (JIS3005)
(4) Sample clamps and holders
(5) Exhaust ventilation system

Test Procedures

(1) Mount the wire sample of specified length in the clamp at a 45° angle for vertical testing.
(2) Set the burner to the required flame parameters and activate automatic ignition.
(3) Expose the sample to the vertical flame for 15 s while monitoring temperature.
(4) For horizontal testing, mount the sample in the JIS3005 horizontal fixture.
(5) Apply the horizontal flame for 30 s.
(6) Observe and record the flame behavior, charring, and any combustion events.
(7) After completion, activate the exhaust system to remove residual gases.

Maintenance Information

(1) Regularly clean the test chamber to prevent soot accumulation.
(2) Inspect the Bunsen burner and flame tubes for blockages or wear.
(3) Check thermocouple calibration before testing.
(4) Ensure exhaust ventilation is unobstructed.
(5) Store flammable gases safely according to regulations.

Conclusion

The Automotive Wire Combustion Tester provides reliable assessment of wire flame resistance, supporting safety verification, R&D evaluation, and quality control. It ensures automotive wiring meets required standards for vehicle fire safety.

FAQ

(1) What is this product?
It is a tester for evaluating the combustion and flame resistance of automotive wires.

(2) What is this product used for?
It tests whether wires comply with flame-resistance standards under controlled flame exposure.

(3) What is the working principle of this product?
Wires are exposed to controlled flames in vertical and horizontal positions, with temperature monitored and combustion behavior recorded.

(4) Why is this product important?
It ensures automotive wires maintain safety under fire exposure, preventing electrical fire hazards.

(5) What industries is this product suitable for?
Automotive wire manufacturing, electrical cable production, R&D laboratories, and quality control facilities.
