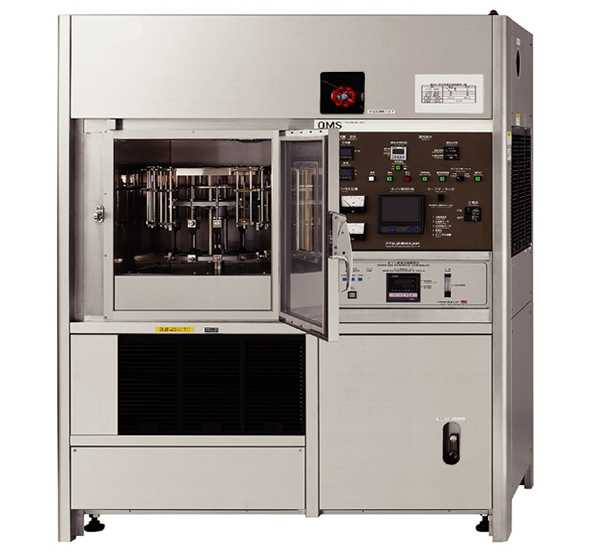

UV Carbon Arc weather Meter

Introduction:Weatherproof test: This test is conducted to find out the impacts on some items and par

WhatsApp : +86 15601902607

Email : info@qinsun-lab.com

Content

Introduction:

Weatherproof test: This test is conducted to find out the impacts on some items and parts in a natural condition by such factors as sunbeam, ozone, rain, snow, temperature and humidity. It will also find out the resistance of the aforesaid items to the aging effects imposed on them by the elements. The changes of properties of the items under test such as deformation, discoloration, rate of penetration, gloss, peeling, hardness and softness maybe found out easily in a short time. With the result of the test, the quality requirement may be improved. This test device may be used in many fields such as aviation, coating industry, automobile industry, textile industry, dyestuff industry, plastic industry and construction companies.

Feature:

1. Glass carbon dust suction device.

2. The voltage automatically detect the secondary.

3. Servo current adjustment device.

4. Odor automatic discharge device.

5. Spray humidification devices and ultrasound assisted humidification.

6. Specimen condensation promoting way, can improve the reproducibility of the test piece 10 times.

7. High life carbide.

8. Borosilicate glass windows and light simulation.

MODLE
ITEM

TMJ-9705
LIGHTING SOURCE
ENCLOSED CARBON ARC
INSIDE DIMENSION
1000x1000x900(WxDxH) mm
OUTSIDE DIMENSION
1300x2000x1300(WxDxH) mm
WEIGHT
400KG
TESTING TIME
24Hr/48Hr*
TEST VOLTAGE
120V to 145V (135V) 135V±2%
TEST CURRENT
15A to 17A (16A) 16A±2%
BLACK PANEL TEMPERATURE
CONSTANTLY 60oC or 83±3oC AUTOMATICALLY
SPECIMEN DRUM DIA.
800mm
DRUM ROTATION SPEED
1RPM
TEST SPECIMENNo.60 PCS (2 STAGE)

SIZE150 x70mm(WxD)
TEMPERATURE RANGE
RT+10oC ~85oC
HUMIDITY RANGE
DRY at 40oC, 40% to 85% RH
DRY at 80oC, 30% to 50% RH

CARBON TYPEUPPER13Фx305mm( 1 UNIT )23Фx106mm( 1 UNIT ) 48H

LOWER13Фx100mm( 2 UNIT )18Фx105mm( 1 UNIT ) 48H
POWER SOURCE
220V/380V SINGLE PHASE 11KVA
