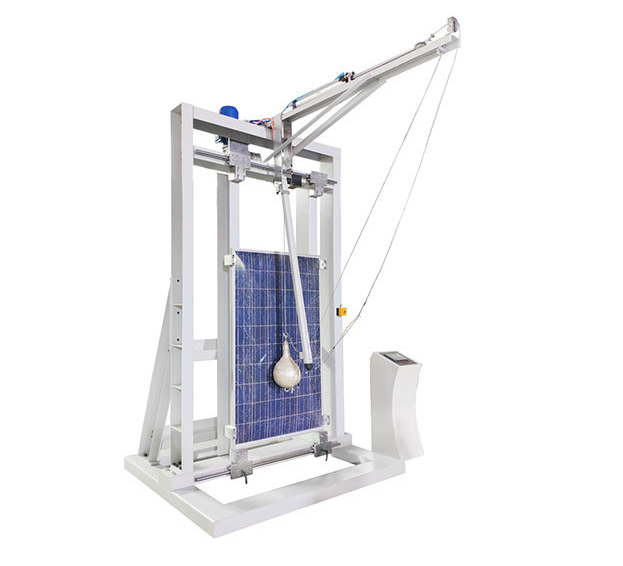

Photovoltaic Module Fracture Test Machine

The Photovoltaic Module Fracture Test Machine is designed to evaluate the impact resistance of photovoltaic (PV) modules. By dropping a weighted impact bag from an adjustable height onto the module surface, it simulates mechanical shocks that modules may experience during transportation, installation, or natural events. The system accurately assesses the mechanical strength and fracture tolerance of PV modules, ensuring their reliability and compliance with international safety standards.

Application

The machine is widely applied in:

Mechanical Impact Performance Evaluation: Assess PV module resistance to impact loads.

R&D Validation: Verify impact resistance of modules during development stages.

Certification Testing: Compliant with IEC 61730-2004 for electrical safety and mechanical performance.

Transport and Storage Safety Assessment: Simulate handling and installation shocks.

Material and Design Comparison: Evaluate impact performance of different module materials or backsheet designs.

Quality Control and Reliability Testing: Ensure consistent module mechanical integrity before market release.

Standards

IEC 61730-2004 – Photovoltaic (PV) Module Electrical Safety and Mechanical Performance Requirements

Parameters

Features

Adjustable impact height accommodates different module specifications.

Impact bag filled with lead spheres precisely simulates real-world impact forces.

Sample frame and rubber protective strips ensure operator and equipment safety.

Customizable sample frame dimensions fit a variety of module sizes.

Motor-driven system provides high repeatability and accuracy.

Simple operation suitable for research, production, and certification laboratories.

Accessories

Sample Frame: Customizable dimensions with protective rubber strips.

Impact Bag: 45.5 kg weight filled with lead spheres.

Motor: Drives the impact mechanism, powered by 220 V AC.

Safety Guard Rails: Installed on both sides for operator protection.

Compressed Air System: 3–5 kg/cm² to assist smooth impact action.

Lead Spheres: Diameter 2.5–3.0 mm, replaceable for maintenance.

Test Procedures

Mount the PV module in the sample frame and ensure it is securely fixed.

Adjust the impact height according to test requirements.

Confirm the impact bag is correctly filled with lead spheres and connected to the motor drive and compressed air.

Verify that safety guard rails are in place and that personnel are clear of the impact zone.

Start the test, performing single or repeated impacts as required.

After the test, examine the module for fractures and record results.

Regularly inspect the motor, impact bag, and sample frame for wear to ensure safe operation.

Maintenance Information

Regularly check motor operation and ensure proper electrical connections.

Inspect the impact bag and lead sphere fillings for wear or damage.

Maintain the sample frame and protective rubber strips, replacing as necessary.

Ensure compressed air system operates within 3–5 kg/cm² range.

Clean the equipment after testing and store in a dry, secure environment.

Conclusion

The Photovoltaic Module Fracture Test Machine provides precise simulation of mechanical impact stresses on PV modules. Adjustable impact height and lead-filled impact bags enable accurate reproduction of transportation, installation, and environmental shocks. The system ensures reliable evaluation of module fracture resistance, supports R&D, quality control, and certification testing, and ensures compliance with IEC 61730-2004 mechanical and electrical safety standards.

FAQ

What does the Photovoltaic Module Fracture Test Machine measure?

It evaluates the impact resistance of PV modules by simulating mechanical shocks from transport, installation, or environmental events. The system uses a weighted impact bag dropped from an adjustable height, filled with lead spheres to reproduce realistic impact forces. This allows precise assessment of module fracture tolerance and mechanical strength.

How is the impact load applied to the module?

The impact load is applied using a 45.5 kg impact bag filled with lead spheres (2.5–3.0 mm diameter). The bag is dropped from an adjustable height between 300–1220 mm. Compressed air assists smooth motion, and the force is controlled by bag weight, filling, and drop height, ensuring standardized and reproducible testing.

Can the test height be adjusted for different module sizes?

Yes. The impact height is adjustable from 300 mm to 1220 mm, allowing testing of modules of different sizes and strengths. The sample frame is also customizable to securely hold modules of various dimensions while maintaining safety and accuracy during the impact test.

What safety features are included in the machine?

Protective guard rails on both sides prevent personnel from entering the impact zone. The sample frame includes rubber strips to prevent damage to modules and reduce rebound risk. Operators are required to stay clear of the impact area during testing, ensuring safe and controlled operation.
