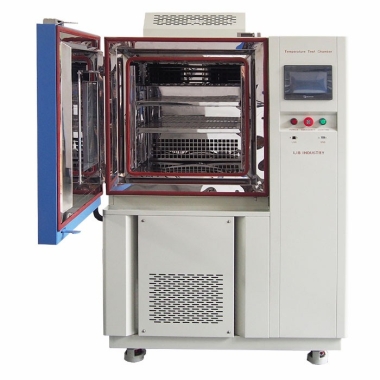

Thermal Testing Equipment

Features and Benefits1. Wide Temperature Range with Precise Control：The thermal testing thermal

WhatsApp : +86 13816217984

Email : info@qinsun-lab.com

Content

Features and Benefits

1. Wide Temperature Range with Precise Control：The thermal testing thermal testing equipment cover a wide temperature range from -20℃，-40℃，-70°C to +180°C, with temperature fluctuation within ±0.5°C and uniformity within ±2.0°C.

2. Rapid Temperature Change & High Efficiency：Featuring fast temperature ramp rates up to 5°C/min (customizable to 10~15°C/min), STD thermal testing equipment reduce test cycles for thermal cycling, thermal shock pre-conditioning, and life simulation tests.

3. Multiple Chamber Sizes & Custom Configuration：Standard models range from 100L to 1000L, with larger walk-in and drive-in versions available. Customizable options include additional test ports, cable holes, load shelves, or integration with vibration platforms for combined stress testing.

4. Complete Safety System & Broad Industry Use: Equipped with over-temperature protection, circuit breakers, door interlocks, and leakage detection, ensuring both equipment and operator safety. Widely used in automotive, electronics, aerospace, battery, and materials R&D.

Details

Workroom	The product is made of SUS#304. which is corrosion-resistant and heats evenly. It comes with a double-layer adjustable shelf for easy and flexible placement of test samples. Customization of multiple layers is also available. The bottom of the chamber has an inclined angle to facilitate the timely drainage of condensate water.
Cable Port	Equipped with one or more silicone-sealed cable interfaces , with a diameter of 50 millimeters. it is convenient to safely and conveniently connect external power supplies or signal cables, and can be customized.
Cooling System	Equipped with a cascade cooling system, the cooling process uses environmentally friendly refrigerants that meet the requirements of Global Warming Potential (GWP), enabling a rapid temperature drop rate of ≥5°C per minute.
Remote Control	Remote monitoring and operation are carried out via Ethernet connection. Users can adjust parameters in real time, start/stop tests, and download test data. The touchscreen control panel is available and allows remote access via PC.

Specifications

Model	STD TR5-100	STD TR5-225	STD TR5-500	STD TR5-800	STD TR5-1000
Internal Dimension (mm)	400500500	500600750	700800900	80010001000	100010001000
Overall Dimension (mm)	90010501620	100011401870	120013402020	130015402120	150015402140
Interior Volume	100L	225L	500L	800L	1000L
Heat load	1000W
Temperature Range	A : -20℃ ~ +150 ℃ B : -40℃ ~ +150 ℃ C: -70℃ ~ +150 ℃
Temperature Fluctuation	± 0.5 ℃
Temperature Deviation	± 2.0 ℃
Cooling Rate	5℃/min (10/15℃/min)
Heating Rate	5℃/min (10/15℃/min)
Controller	Programmable color LCD touch screen controller, Multi-language interface, Ethernet , USB
Cooling System	Mechanical compression refrigeration system
Exterior Material	Steel Plate with protective coating
Interior Material	SUS304 stainless steel
Power Supply	380V
Maximum Noise	65 dBA

Qinsun Instruments Co., LTD is a professional laboratory testing instrument manufacturer in China,Have been focusing on laboratory instrument R&D more than 30 years and have rich industry experience,Based on international testing standards,We are also the instrument supplier for BV SGS laboratory,We provide one-stop solutions for lab instruments,Free Training and Turn-Key Service,Products exported all over the world,Offer 36 month warranty and are a trustworthy partner.
