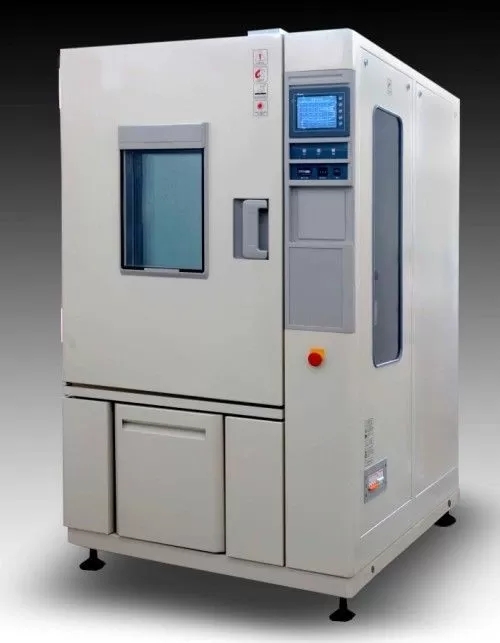

Temperature and Humidity Environmental Test Chamber LCD Colour Touch Screen

Detailed Product Description

Use of environmental test chamber

It is used mainly in the testing of electronics, components, pharmaceuticals, boards, quality control and R&D.

1 Performance: (for no-load, the air-cooled at room temperature 25 ℃)

1.1 Temperature range: -40 ℃ ~ 150 ℃

1.2 Temperature Control Stability: ± 0.2 ℃

1.3 Temperature distribution is: ± 1.0 ℃ (above 80 ℃ and below -40 ℃ the temperature distribution is ± 1.5 ℃)

1.4 Temperature rise time: room temperature rise to 150 ℃ need 35 minutes

1.5 Cooling time

Temp range Time needed

20~ 0℃ About 30 minutes

20~-20℃ About 40 minutes

20~-40℃ Around 50 minutes

1.6 Humidity: 10% ~ 98% RH. Note: 10% at 60 degrees when the temperature and humidity control can be

1.7 Stability: ± 2.5% RH.

1.8 Humidity distributions are degrees: ± 3%

1.9 Temperature and humidity control: (ordinary normal range)

Key Features

LCD Colour Touch Screen

Both Temperature and Humidity are Programmable

With RS232 output to computer

With Viewing Window

With thermostats (prevent overheat)

Inner material: Stainless steel SUS#304(1.20mm thick) stainless steel welding all aroud.

Outside material: special steel powder coating, the bottom can be fixed, adjusted the level of the PU with four casters.

Internal Dimension External Dimension

STD-E1 50*60*40 100*160*100

STD-E2 65*75*50 102*175*124

STD-E3 80*90*70 122*190*144

STD-E4 100*100*100 142*200*180
