Detailed Product DescriptionSTANDARDSTD IPX3 IPX4 Water Spray TesterMaterial:Stainless SteelEnd
WhatsApp : +86 13816217984
Email : info@qinsun-lab.com
| STANDARD | STD IPX3 IPX4 Water Spray Tester | Material: | Stainless Steel |
|---|---|---|---|
| Endulum Angle: | STD IPX3: 120°(±60°); IPX4: 360°(±180°) | Swing Pipe Speed: | STD IPX3: 4s/time (2x120°) IP4X: 12s/time (2x180°) |
| Water Discharge: | 1-10L/min, Adjustable | Swivel Table Diameter: | 700mm |
| Highlight: | environmental testing equipment,environmental testing machine | ||
The rain test system is strictly designed according to IEC60529. It’s applied to the Electrical equipment of the waterproof test of IPX3 and IPX4.
| Power Supply | Single phase: AC220V, 50Hz |
| Swing Pipe diameter | 19mm, thickness 2mm |
| Swing Pipe radius | R800 (304 stainless steel) |
| Orifice diameter | 0.4mm |
| Orifice angle | IPX3: 120°; IP4X: 180° |
| Pendulum Angle | IPX3: 120°(±60°); IPX4: 360°(±180°) |
| Swing Pipe Speed | IPX3: 4s/time (2x120°) IP4X: 12s/time (2x180°) |
| Water discharge | 1-10L/min, adjustable |
| Test time | 0-999mins, can preset |
| Swivel table diameter | 700mm |
| Swivel table speed | (1-5) rpm |
| Tiltable Angle | 15° |
| Swivel table rotation angle | 900°,continuous rotation |
| Pressure Gage | 0~0.25MPa |

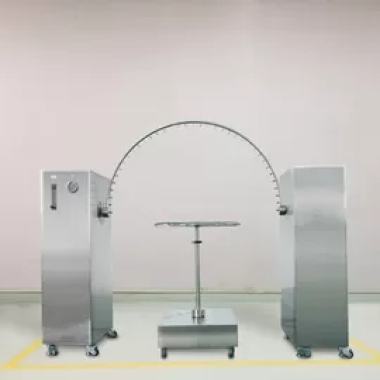

The tubes oscillate to almost 180 ° either side of vertical. The degree of oscillation can be set on the touch screen controller or one of the three pre-set values, 90 ° , 120 ° , or almost 180 ° , can be selected.
A specimen support is also included. It is supplied with two specimen bases - one perforated for IPX4 and one non-perforated for IPX3. The support is made from stainless steel and mounted on wheels for easy maneuverability and adjustment. It offers height adjustments that range from 855mm to 1300mm. The oscillating tubes are manufactured with orifice radii of 200 mm to 1600 mm with a progressive ratio of 200 mm.
1.Material: stainless steel
2.Accurate flow adjustable
3.Steady swing
4.The pedndulum pile can do 1600mm
5.Professional rain room is required
