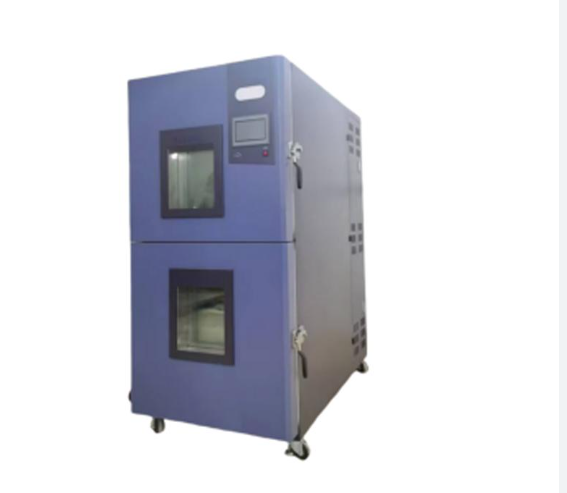

Specifications of Thermal Shock Test Machine
Model | TS-162 | TS-340 | TS-500 | TS-1000 | |
Internal Dimensions (mm) | 300*300*250 | 450*450*360 | 650*650*500 | 850*850*700 | |
Overall Dimension (mm) | 1560*870*1545 | 1710*1020*1845 | 1910*1220*2265 | 2110*1420*2665 | |
Interior Volume (mm) | 22L | 72L | 211L | 505L | |
Loading Capacity | 20kg | 30kg | 50kg | 60kg | |
Pre-heat Room | Upper limit Temperature | +220℃ | |||
Heating Time | Ambient ~ + 200℃, within 30 minutes | ||||
Pre-cool Room | Lower limit Temperature | -75℃ | |||
Cooling time | Ambient ~ -70℃, within 30 minutes | ||||
Test Room | High Temperature Exposure Range | Ambient +20 ~ +200°C | |||
Low temperature Exposure Range | –65 ~ -5°C | ||||
Temperature Fluctuation | ≤±0.5℃ | ||||
Temperature Deviation | ≤±3 ℃ | ||||
Temperature Recovery Time | Within 5 minutes | ||||
Cooling System | Mechanical compression refrigeration system | ||||
Controller | Programmable color LCD touch screen controller, Ethernet connection | ||||
Safety Device | Over-temperature protection, Over-current protection; Refrigerant high-pressure protection; Earth leakage protection | ||||
Exterior Material | Steel Plate with protective coating | ||||
Interior Material | SUS304 stainless steel | ||||
Observation Window | Interior lighting, double-layer thermo stability silicone rubber sealing | ||||
Standard Configuration | 2 shelves | ||||
Features and Benefits
1. The pneumatic lifting system, with extremely rapid temperature zone switching, completes the thermal shock conversion within 3 seconds, meeting the standards such as IEC 60068-2-14 and MIL-STD-883 for "unbuffered temperature conversion".
2. Precise temperature control, with a fluctuation of ±0.5℃ and uniformity of ±2.0℃, ensures the consistency and reliability of test results.
3. The two-box structure is more concise and has a smaller heat dissipation burden. During the test cycle, only two temperature zones need to operate alternately, reducing overall energy consumption and saving operating costs.
4. The thermal shock test machine adopts a vertical compact structure design, occupying less space. Combined with mobile casters, it can be flexibly deployed in laboratories or beside production lines.
