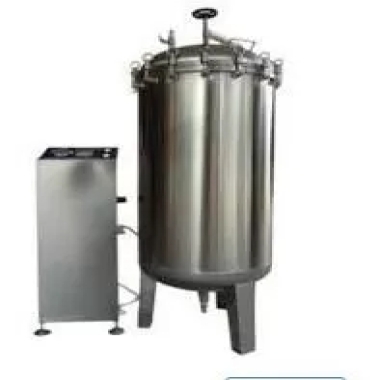

Detailed Product DescriptionSTANDARD:STD-SL-IPX8-50A-350L Diving Test Equipment Split TypeSpray
WhatsApp : +86 13816217984
Email : info@qinsun-lab.com
| STANDARD: | STD-SL-IPX8-50A-350L Diving Test Equipment Split Type | Spray Ring Radius: | 235 (mm) |
|---|---|---|---|
| Water Pipe Diameter: | Φ600mm | Nozzle Diameter: | Φ0.4mm |
| Aperture Spacing 50mm: | Aperture Spacing 50mm | Standard: | IPX8-50A-350L |
| Highlight: | environmental testing equipment environmental testing machine | ||
All 304 stainless steel material;
External control cabinet;
Cylinder control cover;
Magnetic flap liquid level gauge;
SIEMENS control panel;
Main Technical parameters
| Model | SL-IPX8-50A-350L |
| Dimension of Inner box | φ600×H 1200mm |
| Outer dimension | 700×780×1750mm |
| Wall thickness | 0.4mm |
| Range of Test depth | 0-50metre |
| Range of test pressure | 0-0.55Mpa / 0-5bar |
| Vent pressure of safety value | 0.55Mpa /5.5bar |
| Liquid level display | Magnetic flap liquid level gauge |
| Pressure control mode | Automatic control by pressure sensor |
| The way of lifting the cover | Cylinder control cover |
| Test time | 0-999min |
| Power | 100w |
| Supply voltage | 220v |
Note:other sizes can be customized according to requipments
