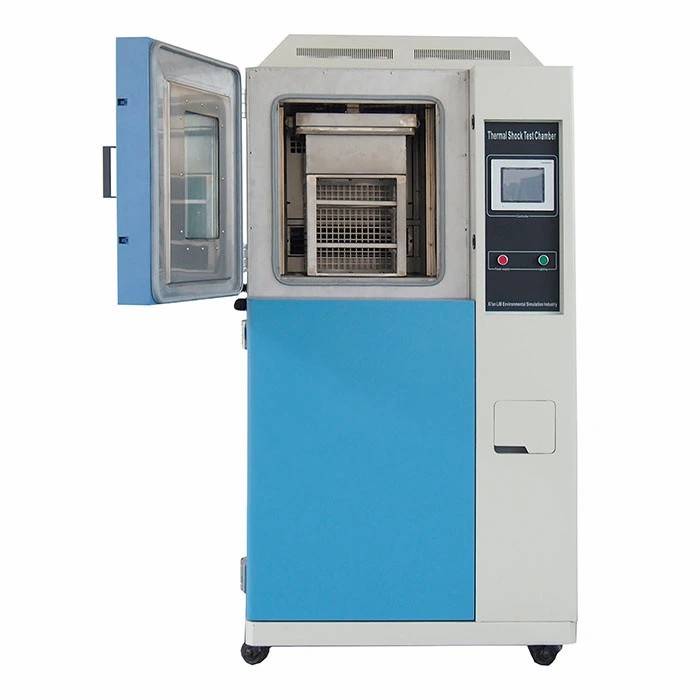

1. The thermal shock environmental chamber has high temperature chamber and low temperature chamber independently, which can be vertically distributed up and down or horizontally left and right.
2. The conversion speed of samples between high and low temperature chambers is fast, generally only 3 seconds, which can quickly simulate the environment with rapid temperature changes.
3. Fast cooling/heating speed, high temperature room and low temperature room can be restored to ambient within 30 minutes.
4. Applicable to electronics, automotive, aerospace, military, medical and other industries, can be used for various materials, parts, equipment temperature impact test.
Model | STD TS-162 | STD TS-340 | STD TS-500 | STD TS-1000 | |
Internal Dimensions (mm) | 300*300*250 | 450*450*360 | 650*650*500 | 850*850*700 | |
Overall Dimension (mm) | 1560*870*1545 | 1710*1020*1845 | 1910*1220*2265 | 2110*1420*2665 | |
Interior Volume (mm) | 22L | 72L | 211L | 505L | |
Loading Capacity | 20kg | 30kg | 50kg | 60kg | |
Pre-heat Room | Upper limit Temperature | +220℃ | |||
Heating Time | Ambient ~ + 200℃, within 30 minutes | ||||
Pre-cool Room | Lower limit Temperature | -75℃ | |||
Cooling time | Ambient ~ -70℃, within 30 minutes | ||||
Test Room | High Temperature Exposure Range | Ambient +20 ~ +200°C | |||
Low temperature Exposure Range | –65 ~ -5°C | ||||
Temperature Fluctuation | ≤±0.5℃ | ||||
Temperature Deviation | ≤±3 ℃ | ||||
Temperature Recovery Time | Within 5 minutes | ||||
Cooling System | Mechanical compression refrigeration system | ||||
Controller | Programmable color LCD touch screen controller, Ethernet connection | ||||
Safety Device | Over-temperature protection, Over-current protection; Refrigerant high-pressure protection; Earth leakage protection | ||||
Exterior Material | Steel Plate with protective coating | ||||
Interior Material | SUS304 stainless steel | ||||
Observation Window | Interior lighting, double-layer thermo stability silicone rubber sealing | ||||
Standard Configuration | 2 shelves | ||||
