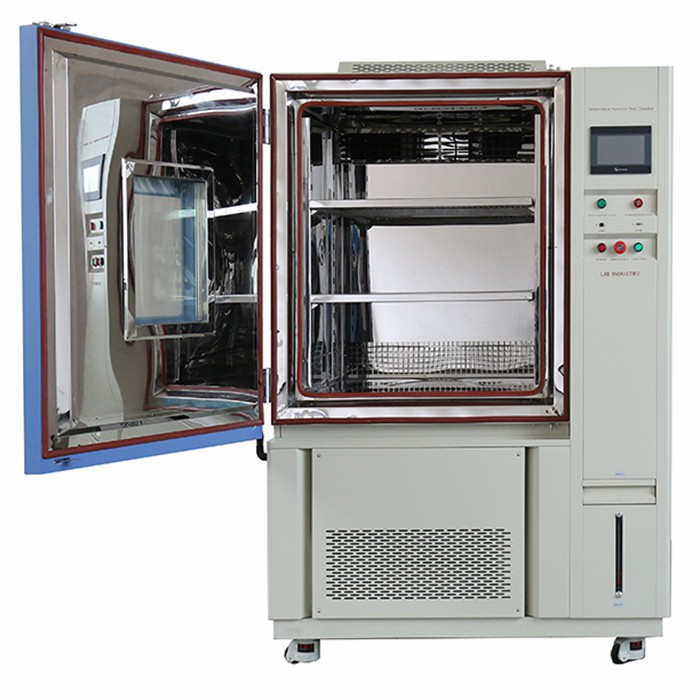

Constant Low Temperature Cabinet

Features and Benefits1. Wide temperature range control from -20℃, -40℃, -70℃ to +150℃, with thr

WhatsApp : +86 13816217984

Email : info@qinsun-lab.com

Content

Features and Benefits

1. Wide temperature range control from -20℃, -40℃, -70℃ to +150℃, with three low-temperature Settings available, meeting the application requirements of various scenarios such as freezing, normal temperature, and heating.

2. High-sensitivity PT100A temperature sensor and PID automatic regulation system ensure precise temperature control and maintain a constant and stable experimental environment.

3. Environmentally friendly refrigerant, meeting GWP limit requirements, efficient insulation and heat preservation layer, reducing energy consumption and heat loss, and extending the service life.

4. Constant low temperature cabinet can be customized in terms of structure, size, interfaces and other aspects according to different application requirements, meeting with multiple international standards.

Specifications

Model

STD T-100

STD T-225

STD T-500

STD T-1000

Internal Dimension (mm)

400*500*500

500*600*750

700*800*900

1000*1000*1000

Overall Dimension (mm)

900*1050*1620

1000*1140*1870

1200*1340*2020

1500*1540*2140

Interior Volume

100L

225L

500L

1000L

Heat load

1000W

Temperature Range

A : -20℃ ~ +150 ℃

B : -40℃ ~ +150 ℃

C: -70℃ ~ +150 ℃

Temperature Fluctuation

± 0.5 ℃

Temperature Deviation

± 2.0 ℃

Cooling Rate

1 ℃ / min

Heating Rate

3 ℃ / min

Cooling system

Mechanical compression refrigeration system,French TECUMSEH compressor,environmentally friendly refrigerant.

Controller

Programmable color LCD touch screen controller, Ethernet connection

Water supply system

Automatic water supply, Water purification system

Safety Device

Over-temperature protection; Over-current protection; Refrigerant high-pressure protection; Earth leakage protection


Disclaimer: The above content is for reference and communication only among industry insiders, and does not guarantee its accuracy or completeness. According to relevant laws and regulations and the regulations of this website, units or individuals who purchase related items should obtain valid qualifications and qualification conditions.
