Features and Benefits1. Humidity accuracy within ± 2.5%RH, temperature and humidity coordinatio
WhatsApp : +86 13816217984
Email : info@qinsun-lab.com
1. Humidity accuracy within ± 2.5%RH, temperature and humidity coordination, avoid cross interference, improve calibration reliability.
2. Full range calibration from very low (20% RH) to very high humidity (98% RH +). Calibrate humidity, temperature and even air pressure at the same time (low pressure test chamber).
3. Internal fan and air duct design ensures that temperature and humidity are evenly distributed in the space to avoid local deviations.
4. The sealed chamber is insulated from external environment fluctuations with 10cm thermal insulation foam to ensure test stability.

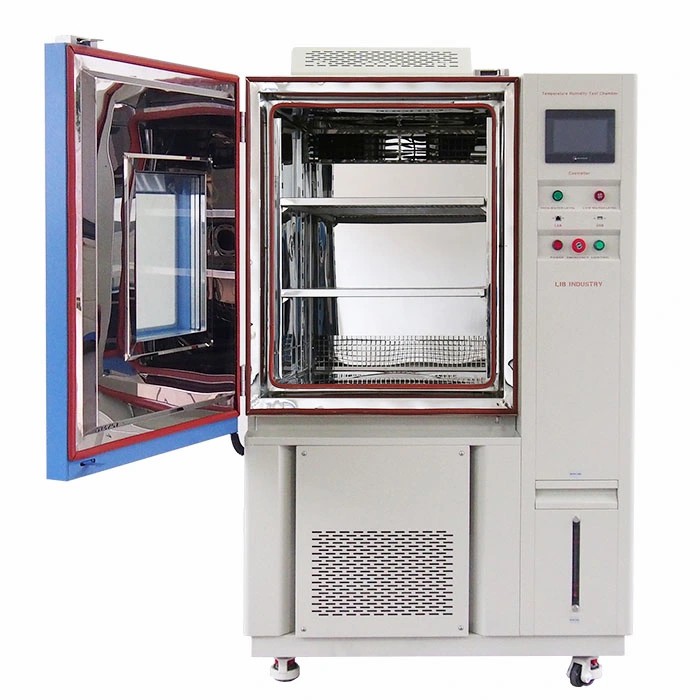

Name | Humidity Calibration Chamber | ||||
Model | STD TH-100 | STD TH-225 | STD TH-500 | STD TH-800 | STD TH-1000 |
Internal Dimension (mm) | 400*500*500 | 500*600*750 | 700*800*900 | 800*1000*1000 | 1000*1000*1000 |
Overall Dimension (mm) | 900*1050*1620 | 1000*1140*1870 | 1200*1340*2020 | 1300*1540*2120 | 1500*1540*2140 |
Interior Volume | 100L | 225L | 500L | 800L | 1000L |
Heat load | 1000W | ||||
Temperature Range | A : -20℃ ～ +150 ℃ B : -40℃ ～ +150 ℃ C: -70℃ ～ +150 ℃ | ||||
Temperature Fluctuation | ± 0.5 ℃ | ||||
Temperature Deviation | ± 2.0 ℃ | ||||
Humidity Range | 20% ~ 98% RH | ||||
Humidity Deviation | ± 2.5% RH | ||||
Cooling Rate | 1 ℃ / min | ||||
Heating Rate | 3 ℃ / min | ||||
Cooling system | Mechanical compression refrigeration system | ||||
Refrigerating unit | French TECUMSEH compressor | ||||
Heating Element | Nichrome heater | ||||
Controller | Programmable color LCD touch screen controller, Ethernet connection | ||||
Water supply system | Automatic water supply, Water purification system | ||||
Humidifier | External isolation, stainless steel surface evaporation humidifier | ||||
Safety Device | Humidifier dry-combustion protection; over-temperature protection; over-current protection; Refrigerant high-pressure protection; Water shortage protection; Earth leakage protection | ||||
Exterior Material | Steel Plate with protective coating | ||||
Interior Material | SUS304 stainless steel | ||||
Thermal Insulation | Polyurethane foam and insulation cotton | ||||
Observation Window | Interior lighting, double-layer thermo stability silicone rubber sealing | ||||
Standard Configuration | 1 Cable hole with plug; 2 shelves | ||||
