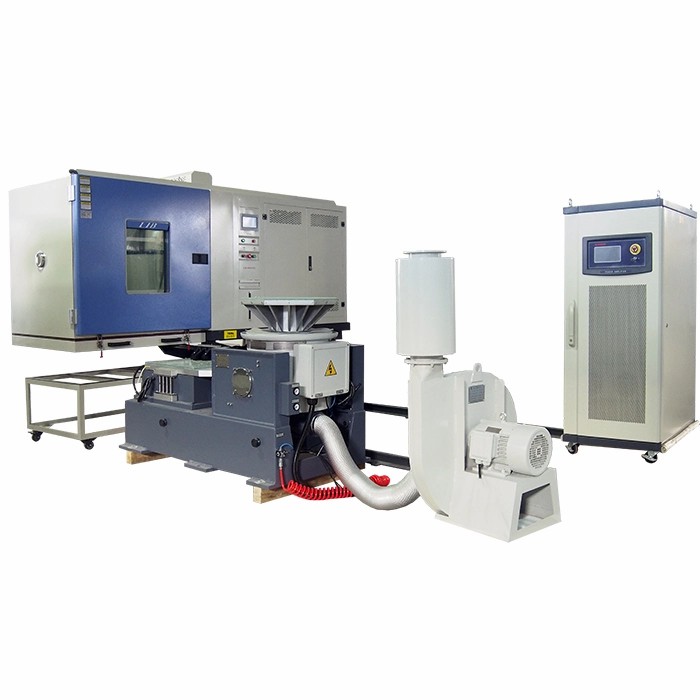

1. With high precision temperature, humidity and vibration control system, temperature shaker chamber can more truly simulate the comprehensive environmental conditions faced by the product compared with the effect of a single factor.
2. Temperature shaker chamber has good thermal insulation performance and structural strength,it can run continuously for a long time and is not prone to failure, ensuring the reliability of test results.
3. Intelligent control system and clear and intuitive operation interface, operators can easily complete a variety of complex test settings and operations.Temperature shaker chamber can record the temperature, humidity, vibration and other data.
4. Widely used in product quality control and R&D process in many industries such as electronics, aerospace, automobile, navigation, communication, medical equipment, etc.
Model | STD THV-225 |
Temperature Range | -50℃ ～ +150 ℃ |
Temperature Fluctuation | ± 0.5 ℃ |
Temperature Deviation | ± 2.0 ℃ |
Humidity Range | 30% ~ 98% RH |
Humidity Deviation | ± 2.5% RH |
Cooling Rate | 5 ℃ / min |
Heating Rate | 5 ℃ / min |
Rated Force of Vibration | 1000kgf |
Frequency Range of Vibration | 2 to 4000 Hz |
Armature Diameter of shaker | φ240mm |
horizontal sliding table | 600*600 mm |
Power Amplifier | Digital power amplifier |
Head Expander | 600*600 mm |
Blower | 4Kw blower, including muffler. |
Cooling system | Mechanical compression refrigeration system |
Safety Device | Humidifier dry-combustion protection; over-temperature protection; over-current protection; Refrigerant high-pressure protection; Water shortage protection; Earth leakage protection |
Exterior Material | Steel Plate with protective coating |
Interior Material | SUS304 stainless steel |
Thermal Insulation | Polyurethane foam and insulation cotton |
Standard Configuration | Cable hole with plug; 2 shelves |
