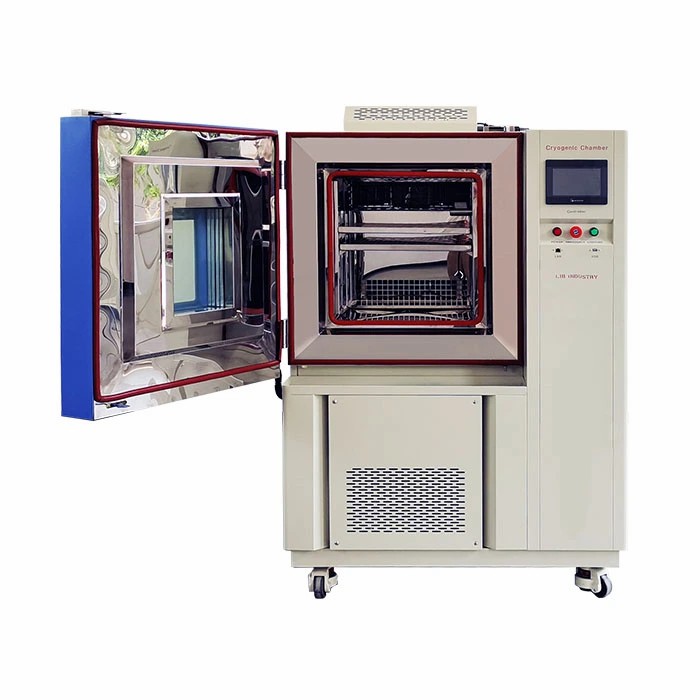

Features and Benefits1. The temperature control range can be as low as -120℃ or even lower, whi
WhatsApp : +86 13816217984
Email : info@qinsun-lab.com
1. The temperature control range can be as low as -120℃ or even lower, which can meet all kinds of low temperature test needs.
2. Equipped with professional temperature control system, the temperature fluctuation range is within ±0.5℃, which can accurately simulate different low temperature environments.
3. High-quality insulation materials, polyurethane foam, etc., effectively reduce heat transfer and ensure a stable low-temperature environment in the cabin.
4. Quickly reach the set temperature and maintain stability, reduce test waiting time and improve test efficiency.
Model | STD CF-100 | STD CF-225 | STD CF-500 | STD CF-800 | STD CF-1000 |
Internal Dimension (mm) | 400*500*500 | 500*600*750 | 700*800*900 | 800*1000*1000 | 1000*1000*1000 |
Overall Dimension (mm) | 900*1050*1620 | 1000*1140*1870 | 1200*1340*2020 | 1300*1540*2120 | 1500*1540*2140 |
Interior Volume | 100L | 225L | 500L | 800L | 1000L |
Temperature Range | -120℃ ~ +150℃ | ||||
Temperature Fluctuation | ± 0.5 ℃ | ||||
Temperature Deviation | ± 2.0 ℃ | ||||
Cooling Rate | 1 ℃ / min | ||||
Heating Rate | 3 ℃ / min | ||||
Cooling system | Mechanical compression refrigeration system | ||||
Refrigerating unit | Cascade compressor | ||||
Heating Element | Nichrome heater | ||||
Controller | Programmable color LCD touch screen controller,Ethernet connection | ||||
Safety Device | Over-temperature Protection; Over-current Protection; Refrigerant High-Pressure Protection; Earth leakage Protection | ||||
Exterior Material | Steel Plate with protective coating | ||||
Interior Material | SUS304 stainless steel | ||||
Thermal Insulation | Plyurethane foam and insulation cotton | ||||
Observation Window | Interior lighting, double-layer thermo stability silicone rubber sealing | ||||
Standard Configuration | 1 Cable hole (Φ 50.) with plug; 2 shelves | ||||
