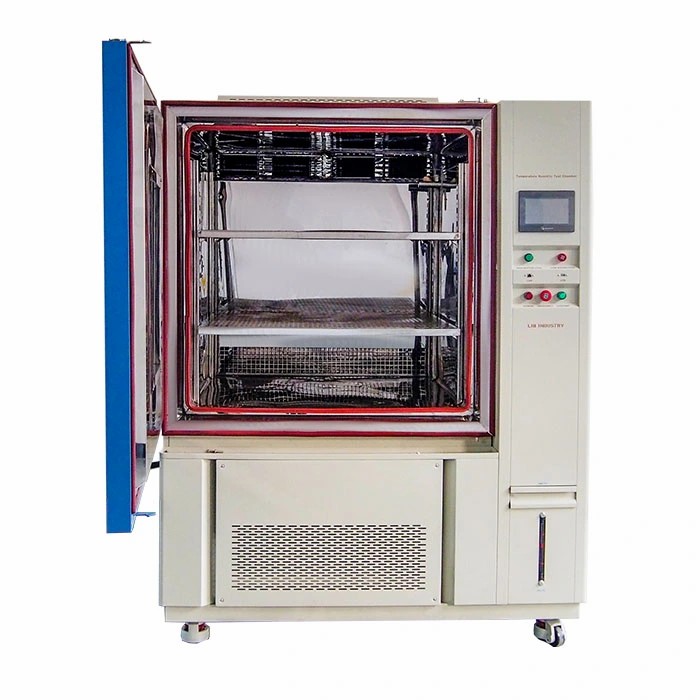

Cold Climate Chamber

Features and Benefits1. STD Industry cold climate chamber is equipped with a mechanical compres

WhatsApp : +86 13816217984

Email : info@qinsun-lab.com

Content

Features and Benefits

1. STD Industry cold climate chamber is equipped with a mechanical compressor, replacing the traditional liquid nitrogen refrigeration method, and the low temperature can be up to -120℃.

2. Air circulation system makes that the temperature distribution in the whole test space is uniform, which can provide a consistent temperature environment for the test sample.

3. The cold climate chamber adopts A3 steel and SUS304 which has high and low temperature resistance.High-density insulation material is filled between the inner and outer shell to improve insulation performance.

4. Cascade mechanical refrigeration technology and energy-saving design can ensure the cooling effect while reducing energy consumption.

Specifications

Model

STD CF-100

STD CF-225

STD CF-500

STD CF-800

STD CF-1000

Internal Dimension (mm)

400*500*500

500*600*750

700*800*900

800*1000*1000

1000*1000*1000

Overall Dimension (mm)

900*1050*1620

1000*1140*1870

1200*1340*2020

1300*1540*2120

1500*1540*2140

Interior Volume

100L

225L

500L

800L

1000L

Temperature Range

-120℃ ~ +150℃

Temperature Fluctuation

± 0.5 ℃

Temperature Deviation

± 2.0 ℃

Cooling Rate

1 ℃ / min

Heating Rate

3 ℃ / min

Cooling system

Mechanical compression refrigeration system


Qinsun Instruments Co., LTD is a professional laboratory testing instrument manufacturer in China,Have been focusing on laboratory instrument R&D more than 30 years and have rich industry experience,Based on international testing standards,We are also the instrument supplier for BV SGS laboratory,We provide one-stop solutions for lab instruments,Free Training and Turn-Key Service,Products exported all over the world,Offer 36 month warranty and are a trustworthy partner.
