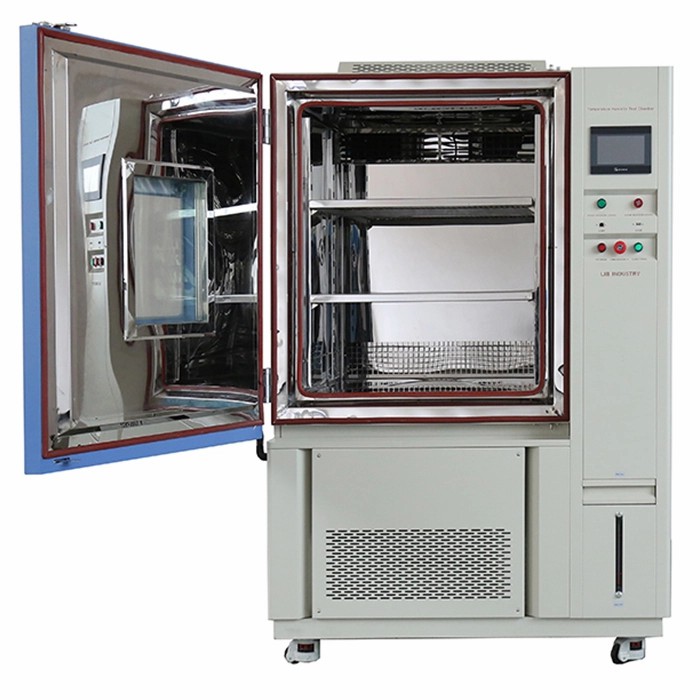

Damp Heat Chamber

Features and Benefits1. Equipped with high precision temperature and humidity probe, the heatin

WhatsApp : +86 13816217984

Email : info@qinsun-lab.com

Content

Features and Benefits

1. Equipped with high precision temperature and humidity probe, the heating, cooling, humidity and dehumidification systems work together to quickly respond to the needs of temperature and humidity changes.

2. Damp heat chamber can simulate a variety of complex temperature and humidity environmental conditions, such as high temperature and humidity, low temperature and humidity, and so on.

3. Good insulation and sealing performance, maintains the stability of temperature and humidity, ensures that the test can be carried out continuously and stably, and avoids affecting the test results due to environmental fluctuations.

4. The optimized refrigeration system, environmentally friendly refrigerant and intelligent control algorithm reduce the energy consumption and operating cost under the premise of meeting the test requirements.

Specifications

Model

STD TH-100

STD TH-225

STD TH-500

STD TH-1000

Internal Dimension (mm)

400*500*500

500*600*750

700*800*900

1000*1000*1000

Overall Dimension (mm)

900*1050*1620

1000*1140*1870

1200*1340*2020

1500*1540*2140

Interior Volume

100L

225L

500L

1000L

Heat load

1000W

Temperature Range

A : -20℃ ~ +150 ℃

B : -40℃ ~ +150 ℃

C: -70℃ ~ +150 ℃

Temperature Fluctuation

± 0.5 ℃

Temperature Deviation

± 2.0 ℃

Humidity Range

20% ~ 98% RH

Humidity Deviation

± 2.5% RH

Cooling Rate

1 ℃ / min

Heating Rate

3 ℃ / min


Disclaimer: The above content is for reference and communication only among industry insiders, and does not guarantee its accuracy or completeness. According to relevant laws and regulations and the regulations of this website, units or individuals who purchase related items should obtain valid qualifications and qualification conditions.
