Features and Benefits1. The constant temperature test chamber is mainly used for drug stability
WhatsApp : +86 13816217984
Email : info@qinsun-lab.com

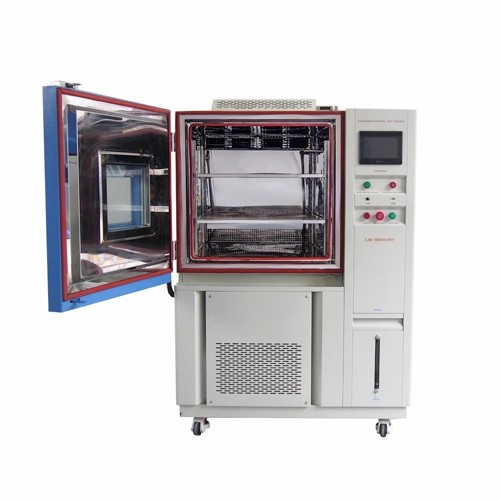

1. The constant temperature test chamber is mainly used for drug stability testing, drug storage, etc.
2. The environmentally controlled chamber has various models to choose from, small, medium and large.
3. The air circulation system of the stability test chamber provides good air circulation, achieving good temperature and humidity uniformity.
4. The chamber is equipped with mobile and detachable casters, which make it possible for customers to move the chamber conveniently.
Model | STD TH-100 | STD TH-225 | STD TH-500 | STD TH-800 | STD TH-1000 |
Internal Dimension (mm) | 400*500*500 | 500*600*750 | 700*800*900 | 800*1000*1000 | 1000*1000*1000 |
Overall Dimension (mm) | 900*1050*1620 | 1000*1140*1870 | 1200*1340*2020 | 1300*1540*2120 | 1500*1540*2140 |
Interior Volume | 100L | 225L | 500L | 800L | 1000L |
Temperature Range | +5℃ to +70 ℃ | ||||
Temperature Fluctuation | ± 0.5 ℃ | ||||
Temperature Deviation | ± 2.0 ℃ | ||||
Cooling Rate | 1 ℃ / min | ||||
Heating Rate | 3 ℃ / min | ||||
Humidity Range | 30% ~ 90% RH | ||||
Humidity Deviation | ± 5% RH | ||||
Cooling system | Mechanical compression refrigeration system | ||||
Heating Element | Nichrome heater | ||||
Controller | Programmable color LCD touch screen controller, Ethernet connection | ||||
Safety Device | over-temperature protection; over-current protection; Refrigerant high-pressure protection; Earth leakage protection | ||||
Exterior Material | Steel Plate with protective coating | ||||
Interior Material | SUS304 stainless steel | ||||
Thermal Insulation | Polyurethane foam and insulation cotton | ||||
Observation Window | Interior lighting, double-layer thermo stability silicone rubber sealing | ||||
Standard Configuration | 2 shelves | ||||
