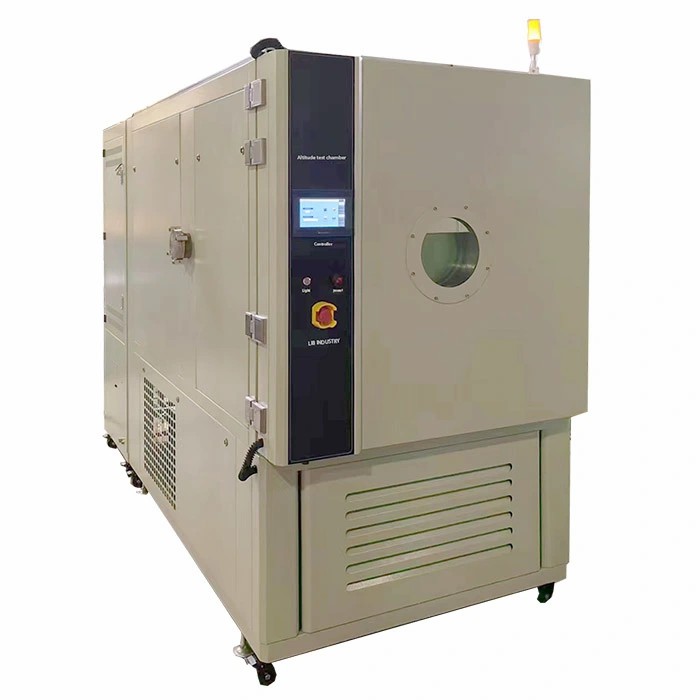

1. The test chamber combines a wide temperature and humidity range, low pressure range, can complete a variety of complex low pressure tests.
2. Complete low pressure test can be performed including: preparation; low pressure storage test; low pressure working test; rapid decompression test; explosion decompression test.
3. The pressure control accuracy can reach ±2Kpa, the low pressure vacuum environment is stable, and the pumping low pressure time is controlled within 30 minutes.
4. Double-layer or multi-layer structure, A3 shell is durable, the workroom uses SUS304. which has good corrosion resistance and thermal insulation performance.
Model | STD A-1000 |
Internal dimensions | D 1500 W 1000 H 970 mm |
External dimensions | D 2050 W 1300 H 2200 mm |
Temperature range | -20℃ ～ +150 ℃ -40℃ ～ +150 ℃ -60℃ ～ +150 ℃ -120℃ ～ +150 ℃ |
Humidity range | 20% ~ 95% (more than 50Kpa can be controlled) |
Temperature fluctuation | ≤ ±0.5℃ |
Temperature deviation | ≤ ±2.0℃ |
Temperature uniformity | ≤ 2.0℃ (under normal pressure and no load) |
Heating rate | 3℃/min |
Cooling speed | 2℃/min |
Pressure range | Atmospheric pressure to 0.5kPa |
Pressure deviation | ± 2Kpa |
Depressurization time | Atmospheric pressure to 0.5k ≤30min |
Pressure enclosure | Manganese steel, surface spray treatment |
Other outer wall materials | Double-sided galvanized steel plate, surface spray treatment |
Inner wall material | SUS304 stainless steel plate |
Vacuum system | Vacuum pump, air pumping regulating valve, inflation regulating valve |
Qinsun Instruments Co., LTD is a professional laboratory testing instrument manufacturer in China,Have been focusing on laboratory instrument R&D more than 30 years and have rich industry experience,Based on international testing standards,We are also the instrument supplier for BV SGS laboratory,We provide one-stop solutions for lab instruments,Free Training and Turn-Key Service,Products exported all over the world,Offer 36 month warranty and are a trustworthy partner.
