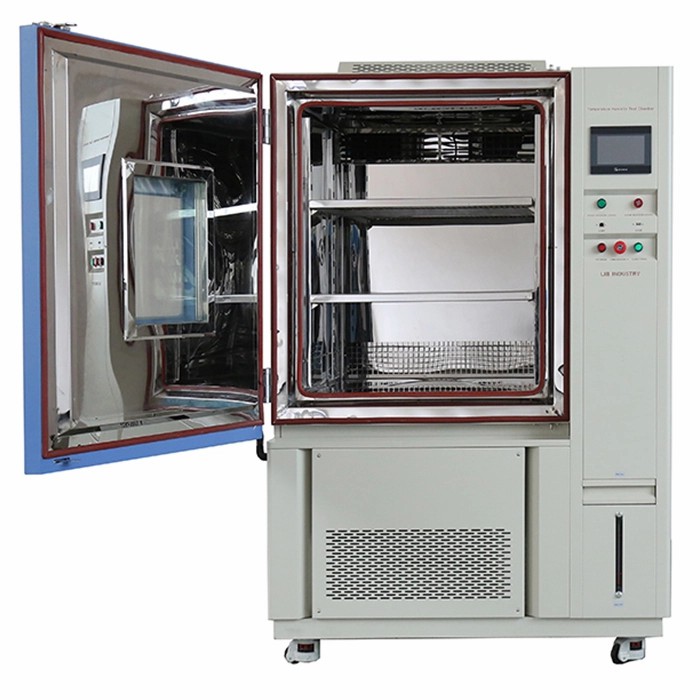

1. The temperature control accuracy can reach ±0.5℃, and the humidity control accuracy can reach ±2.5%RH, which can meet the strict requirements of temperature and humidity in different tests.
2. Thermal stability testing machine can test according to international standards such as IEC,ISO etc., to ensure that the product meets the industry specifications and certification requirements.
3. STD thermal stability testing machine is equipped with multiple safety devices such as leakage protection, overtemperature protection and water shortage protection.
4. Suitable for material and product testing in electronics, automotive, aerospace, food, medicine and other industries.
Model | STD TH-100 | STD TH-225 | STD TH-500 | STD TH-1000 |
Internal Dimension (mm) | 400*500*500 | 500*600*750 | 700*800*900 | 1000*1000*1000 |
Overall Dimension (mm) | 900*1050*1620 | 1000*1140*1870 | 1200*1340*2020 | 1500*1540*2140 |
Interior Volume | 100L | 225L | 500L | 1000L |
Heat load | 1000W | |||
Temperature Range | A : -20℃ ～ +150 ℃ B : -40℃ ～ +150 ℃ C: -70℃ ～ +150 ℃ | |||
Temperature Fluctuation | ± 0.5 ℃ | |||
Temperature Deviation | ± 2.0 ℃ | |||
Humidity Range | 20% ~ 98% RH | |||
Humidity Deviation | ± 2.5% RH | |||
Cooling Rate | 1 ℃ / min | |||
Heating Rate | 3 ℃ / min | |||
