Features and Benefits1. Vertical circulation air blows dust to the workroom, forming a dust cir
WhatsApp : +86 13816217984
Email : info@qinsun-lab.com
1. Vertical circulation air blows dust to the workroom, forming a dust circulation system, dust can be recycled
2. Different size and configuration ranging from 200 liters to to any customized liters.
3. IEC60529 of IP5X and IP6X, ISO20653. IEC 60068-2-68. ASTM and MIL standards.

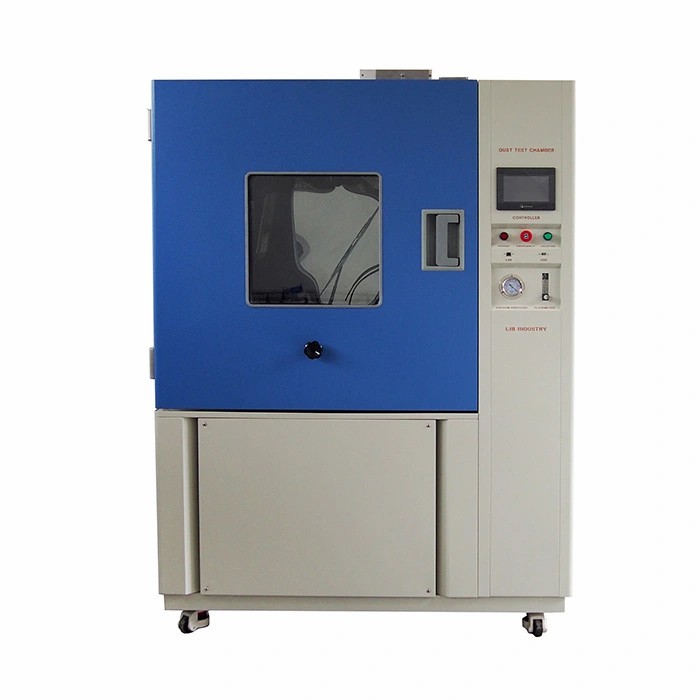

4. The IP6X IP5X ingress test chamber simulates an environmental condition to test the exposure of electronic components to concentrated levels of dust in order to validate product seal integrity.
Model | STD DI-800 | STD DI-1000 | STD DI-1500 | STD DI-2000 |
Internal Dimension (mm) | 800*1000*1000 | 1000*1000*1000 | 1000*1500*1000 | 1000*2000*1000 |
Overall Dimension (mm) | 1040*1450*1960 | 1330*1450*1960 | 1330*1950*1990 | 1330*2450*1990 |
Useful Volume (L) | 800 | 1000 | 1500 | 2000 |
Temperature Range | Ambient ~ +50℃ | |||
Humidity Range | < 30% RH | |||
Normal Wire Diameter | 50um | |||
Nominal Width of a Gap Between wires | 75um | |||
Fight Time | 0 ~ 99H59M | |||
Blowing Time | 0 ~ 99H59M | |||
Specimen Power Outlet | Dust-proof socket 16A | |||
Controller | Programmable color LCD touch screen controller, Ethernet connection | |||
Safety Device | Over-temperature Protection; Over-current Protection; Earth Leakage Protection; Phase Sequence Protection | |||
Exterior Material | A3 Steel Plate with protective coating | |||
Interior Material | SUS304 stainless steel | |||
Standard Configuration | Sample shelf, dust wiper, talcum powder(5kgs) | |||
Power | AC380V 50Hz | |||
Qinsun Instruments Co., LTD is a professional laboratory testing instrument manufacturer in China,Have been focusing on laboratory instrument R&D more than 30 years and have rich industry experience,Based on international testing standards,We are also the instrument supplier for BV SGS laboratory,We provide one-stop solutions for lab instruments,Free Training and Turn-Key Service,Products exported all over the world,Offer 36 month warranty and are a trustworthy partner.
