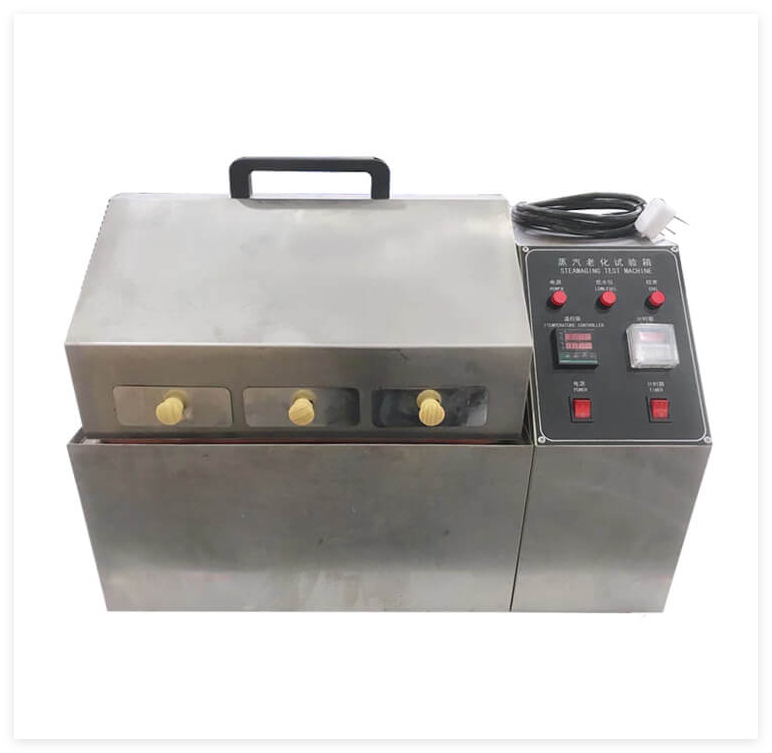

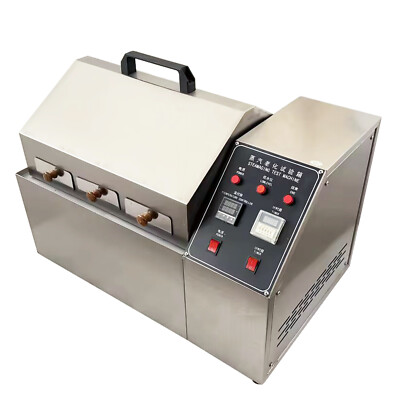

Steam Aging Test Chamber

Steam Aging Test Chamber is an environmental testing instrument intended to determine the specimen’s performance to resist extreme environments under high temperature and high humidity during transportation, storage and use.for artificial aging of all electronic components and circuit boards. This includes high density, discrete components, relays, transistors, capacitors, SMT, and axial components. These steam aging chamber applied for the testing of sealing property for multi-layer circuit board, IC sealing package, LCD screen, LED, semi-conductor, magnetic materials, NdFeB, rare earths and magnet iron, in which the resistance to pressure and air tightness for above mentioned products can be tested out.

The principle is simple to understand, water inside the chamber is heated and turned into steam to form a simulated test environment. Specimens are placed into the drawers of the machine for a predetermined time to complete the test.The steam aging test chamber can be equipped with 3 individually timed, ESD protected drawers with a unique closure mechanism that reduces steam escapement during drawer removal. Both systems provide complete monitoring and control of steam or water temperature and feature automatic timing of the test duration.

Applications：

1. Electronics Industry

Testing PCBs for reliability in extreme humidity and temperature.

Assessment of connectors, semiconductors, transistors, and diodes for accelerated ageing effects.

Evaluation of the solder joints and ICs to be durable in extreme conditions.

2. Automotive Industry

Evaluating the electrical connectors, sensors, and wiring systems for their durability.

Weathering the interior and exterior trim materials, paints, and coatings.

3. Aerospace

Assessing composite materials, adhesives, and sealants for long-term humidity exposure.

Ensuring electronic components are safe and perform under extreme environments.

4. Medical and Pharmaceutical

Sterilization processes of medical devices.

Compatibility of materials used in implants, tubing, and medical equipment.

Packaging of pharmaceuticals like bottles, labels, and caps.

5. Packaging and Food Industry

Testing plastic, paperboard, and corrugated cardboard packaging for moisture resistance.

Verifying food and beverage packaging materials for resistance to environmental conditions.

6. Construction Materials and Textiles

Testing building insulation, roofing, and waterproof membranes for moisture resistance.

Testing fabric, leather, dyes, and finishes for durability under humid conditions.

7. Research and Development

8.Testing materials for new product innovations in all industries.

9.Simulating long-term environmental exposure to test product durability.

Standards:

IEC 60068-2-66 Environmental Testing Standards

GB/T 2423 Environmental Testing for Electric & Electronic Products

MIL-STD-810 Military Testing Standards

JIS C 0028 Japanese Industrial Standards

Technical Parameters:

Features:

1、The Interior and exterior are fabricated from stainless steel.

2、Simple structure enables ease of maintenance.

3、An Anti-rust water tank can be filled manually or connected to a water pipe for automatic filling water.

4、Titanium tubes are used as heating elements to fulfill anti-corrosion and longer service life.

5、Platinum resistance temperature sensor PT-100 is built to enhance accuracy.

6、The microprocessor control unit is the brain to perform and control the test steps.

7、Temperature is precisely controlled via PID.

8、The timer with power failure memory function can resume test based on set time once power recovers.

9、Equipped with automatic safety protection devices to guarantee security during use.
