Instrument for evaluating the sliding friction and wear performance of materials and surface coating
WhatsApp : +86 15601902607
Email : info@qinsun-lab.com

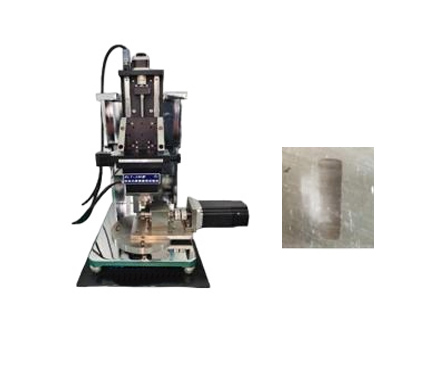

The Ring-on-Block Friction and Wear Tester (Model 2M) is a specialized instrument for evaluating the sliding friction and wear performance of materials and surface coatings. The tester utilizes a standard ring-on-block (shaft-bearing) friction pair to accurately measure friction coefficient, wear volume, and wear resistance under varying contact pressures and rotational speeds. The testing process is computer-controlled, ensuring stable data acquisition and high measurement accuracy. The instrument is suitable for research laboratories and industrial quality control.
Sliding friction and wear performance evaluation of metallic materials.
Wear testing of non-metallic materials (plastics, nylon, composites).
Investigation of surface coatings, platings, and surface treatments.
Performance comparison of bearing materials, journal-bearing materials, and friction pairs.
Research on material tribology under dry and lubricated conditions.
Material quality testing in research institutions, universities, and industrial laboratories.
GB/T 3960-2016 Plastics – Determination of Sliding Wear Properties
GB/T 3960-1983 Plastics – Determination of Sliding Wear Properties (equivalent previous version)
ASTM G77 Ring-on-Block Friction and Wear Test
DIN 50324 General Friction and Wear Testing
ISO 7148 Sliding Friction and Wear Testing (relevant sections)
| Parameter | Specification |
|---|---|
| Test Load Range | 100–1000 g (weight loading) |
| Automatic Loading Range | 10–200 N |
| Friction Ring Size | Diameter 40 mm, Width 10 mm |
| Spindle Speed Range | 5–2000 r/min, continuously adjustable |
| Friction Coefficient Measurement Accuracy | 0.2% F.S |
| Control Method | Computer automatic control |
| Data Acquisition | Real-time measurement of friction coefficient and wear volume |
| Power Supply | 210–235 V, 50–60 Hz |
| Power Consumption | 2500 W |
| Workbench Size | 1800 × 750 × 800 mm (user-supplied) |
Standard ring-on-block friction pair ensures high repeatability of test results.
Supports both weight loading and automatic loading, covering a wide load range.
Continuously adjustable spindle speed allows simulation of different operating conditions.
High-precision friction coefficient measurement for comparative research and quality control.
Computer-controlled testing process with real-time data display and storage.
User-friendly interface, easy maintenance, suitable for long-term stable operation.
| Accessory | Specification / Use |
|---|---|
| Friction Ring | Φ40 mm × 10 mm, standard friction pair |
| Test Block | Replaceable, for testing different materials |
| Weight Set | 100–1000 g, manual loading |
| Automatic Loading Module | 10–200 N, stable load control |
| Data Acquisition Software | Standard, records and analyzes friction data |
| Power Cable | Standard, for instrument power supply |
The Ring-on-Block tester drives the friction ring to rotate against a fixed test block under a set load, forming stable sliding friction. During testing, sensors continuously collect friction force signals to calculate the friction coefficient. Based on load, time, and friction conditions, material wear behavior is evaluated. Comparative testing under identical conditions allows objective assessment of material or coating wear resistance.
Ensure the friction ring and test block surfaces are clean and firmly installed.
Select either weight loading or automatic loading according to the standard.
Set test spindle speed, load, and test duration.
Do not touch rotating parts during testing; ensure safety protections are in place.
If abnormal friction force or vibration occurs, stop the machine immediately for inspection.
Save test data and clean the friction pair after the experiment.
Prepare test specimens and measure initial dimensions according to relevant standards.
Install friction ring and test block, set load and spindle speed.
Start the test; the instrument operates automatically and collects friction data in real time.
Record friction coefficient changes and wear conditions after testing.
Analyze wear volume or surface morphology of the specimens.
Compile and summarize test data into a complete test report.
1.What is this product?
A Ring-on-Block Friction and Wear Tester designed for sliding friction and wear evaluation of materials and coatings.
2.What is this product used for?
Measuring friction coefficient, wear volume, and wear resistance under different load and speed conditions.
3.Why is this product important?
Provides high-precision, repeatable friction and wear data for material research, coating evaluation, and industrial quality control.
4.What industries is this product suitable for?
Tribology laboratories, material research, coatings testing, bearing and mechanical component evaluation, industrial QC.
5.What types of this product are available?
Ring-on-Block testers with weight or automatic loading, adjustable spindle speed, and real-time data acquisition.
