DescriptionThe STD-TE 65 Multiplex Sand/Wheel Abrasion Tester is designed to perform tests accordin
WhatsApp : +86 13816217984
Email : info@qinsun-lab.com
The STD-TE 65 Multiplex Sand/Wheel Abrasion Tester is designed to perform tests according to the conditions described in the following methods:
ASTM G65 Standard Test Method for Measuring Abrasion Using the Dry Sand/Rubber Wheel Apparatus
ASTM G105 Standard Test Method for Conducting Wet Sand/Rubber Wheel Abrasion Tests
ASTM B611 Test Method for Abrasive Wear Resistance of Cemented Carbides

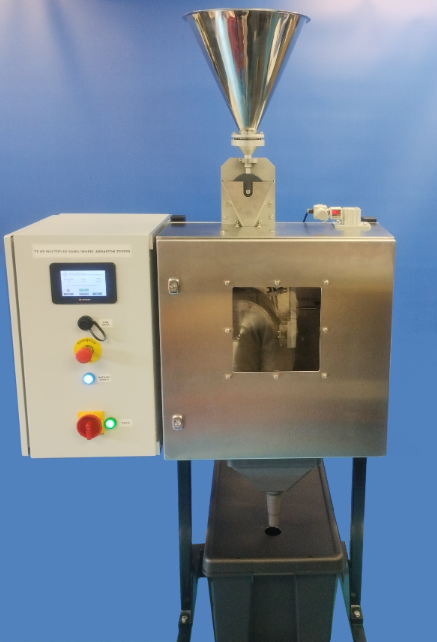

The machine is floor standing with test assemblies mounted on a back-plate and abradant discharged downwards into a collecting hopper. Load is applied by pneumatic cylinder in conjunction with a manually adjusted precision regulator, with a pressure sensor for load measurement.
Speed set-point control is manual, implemented via a PLC, with input via touch-screen.
| ASTM Conditions | |
| Wheel Speed: | 10 to 350 rpm |
| 9″ rubber wheel as per ASTM G65 | |
| Wheel Types: | 6.65″ steel wheel as per ASTM B611 |
| 7″ rubber wheel as per ASTM G105 | |
| Load: | 20 to 350 N |
| Motor Type: | a.c. motor with frequency inverter drive |
| Specimen Size: | 25 mm x 58 mm |
| Specimen Thickness: | 6 mm to 16 mm |
| Test Types: | ASTM G 65. ASTM G 105. ASTM B 611 |
| Services | |
| Electricity: | 220/240V, single phase, 50 Hz, 1 kW |
| 110/120 V, single phase, 60 Hz, 1 kW |
