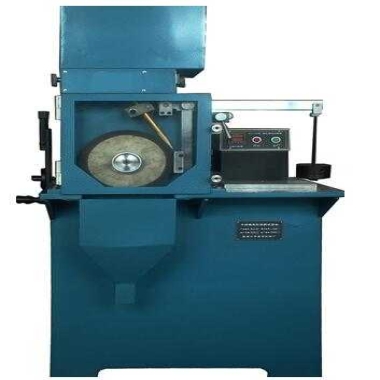

Dry and Wet Sand Rubber Wheel Abrasion Tester

Application:

Dry and wet sand abrasive wear testing machine is mainly used to evaluate the wear resistance of materials in dry and wet sand abrasive environment. By simulating the wear environment of dry sand or wet sand in actual working conditions, the testing machine can quantitatively test the wear resistance of different materials. This kind of equipment has a wide range of application value in material research and development, product quality control, industrial production and other fields.

Specifically, the main uses of dry and wet sand abrasive wear testing machines include:

Material research and development; In the development process of new materials, wear-resistant parts are an important performance index. Dry and wet abrasive wear testing machines can help developers quickly and accurately evaluate the wear resistance of new materials, thereby guiding the optimal design of materials.

Industrial production: In industrial production, many parts need to have good wear resistance to ensure product stability and service life. By using dry and wet sand abrasive wear testing machines to test parts, it can help enterprises screen out materials and processes with good wear resistance, thereby improving product quality.

Quality control: Dry and wet abrasive wear testing machines are also widely used in product quality control. Through the wear resistance test of the products produced, the unqualified products can be found and treated in time to ensure that the products flowing to the market have good resistance.

main feature:

1. consists of two parts: host and control system;

2. The main part includes the base, the spindle and the drive system, the weight loading system, the sample clamping part;

3. Control system includes measurement and control, display instrument part, two parts with control cable connection;

4. Can change the load, speed, time, friction sponge material, surface roughness, hardness and other parameters of the test.

Rubber wheel abrasive wear tester main parameters:

1, the maximum test force: 200N

2, the indication accuracy: ± 1%

3, the spindle speed adjustment range: 10r / min-200r / min

4, the spindle speed accuracy: 1r / min

5, the temperature measurement range: room temperature -200 ℃

6, test the number of revolutions: 1-9999999 set

7, the input voltage: AC 380V

8, the input power: 2.2kW

9, for the sand system adjustment range: 10-500g / Min

Rubber wheel abrasive wear tester detection process:

1. The spindle box is mounted on the base, the spindle is supported by a set of bearings, with high rotation accuracy. Spindle rear and motor connection;

2. In the right half of the base is a weight loading system, the spindle can be applied to the sample on the maximum radial load of 200N;

3. The inner specimen is fastened to the conical surface of 1: 7 on the front end of the spindle with M20 * 2 nut, and the outer sample is fixed in the outer sample card slot of the afterburner;

4. The application of the test force and unloading by the loading system to complete the size of the load by loading to complete the load lever equalization arm weight plate and double arm plate, weight is divided into 1N, 2N, 5N, 10N, 20N, 50N six, so that in the range of 1-200N integer to achieve the electrodeless loading;

5. LCD screen shows the spindle speed and experimental time;

6. Adjust the speed, set the operation, please refer to the inverter operating instructions;

7. Test time control by the instrument is completed, the use of dial can be preset test time, time will be after the alarm and shutdown protection;

8. The meter shows the change in sample temperature during the test.
