Fabric Abrasion Tester

Product Information:

For fabric, wear resistance is a important indicator to evaluate  its performance and durability properties. In the process, an abrasion material maintains line contact with the test specimen which has been clamped onto a rotating test head, and producing an abrasion effect in a tangential direction.

The fabric abrasion tester can be used to determine the appearance changes of samples after the friction or wear test, that is the recommended test method for DIN 53863.2. GME Standard 60345. GMW Standard 3283. VW/Audi Zentral - Norm PV 3908 Standard.

Testing Standards:

DIN 53863. part 2 , GME Standard 60345. GMW Standard 3283. VW/Audi Zentral-Norm PV 3908

Product structure:

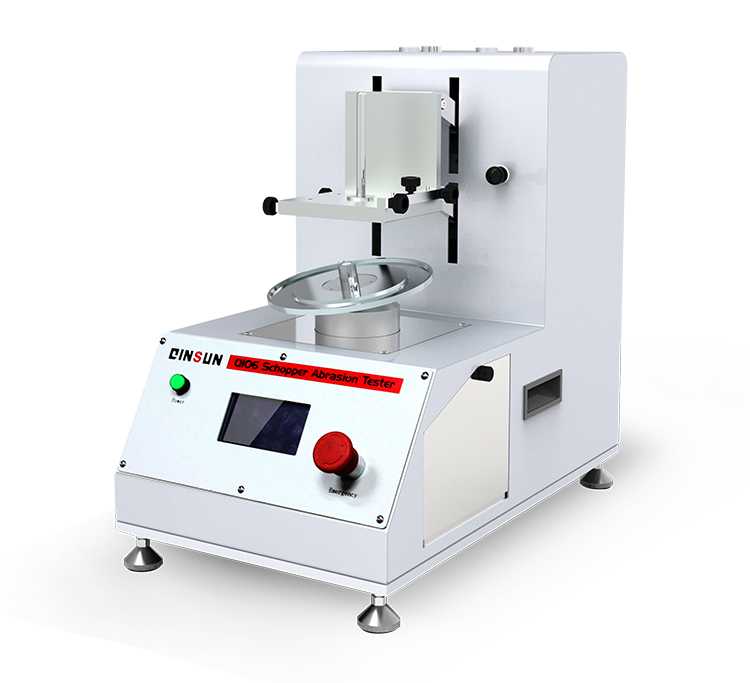

The Schopper Abrasion Tester comes with a compact and firm design, includes clamping device of an obtuse Angle cone chuck, mounting support for fixing the test head, control and drive unit.

A clamping spanner for easily preparing and clamping the specimen, and an adjustable arc height measuring device is equipped to measure the arc height of the samples. All the parts designed reasonable?and use-friendly. Put the sample in plane with abrasion block, the test is performed by exerting a rotating action of friction, with friction area of 50 cm2.

Technical Parameters:

1.Number of revs: 75l/min;

2.Taperangle: 166°;

3.Declination of mounting head support: 7°;

4.Specimen size: 100cm2;

5.Test area: 50cm2;

6.Arc height measuring device, 0 - 10mm adjustable;

7.Loads on specimen: 0.5 - 25N adjustable;

8.Loading weight: 50g, 100g, 250g, 500g, 1000g, 1500g;

9.External dimension: 325×565×560mm;

10.Weight: 35kg;
