Brand:QINSUN
Model:G-CL440

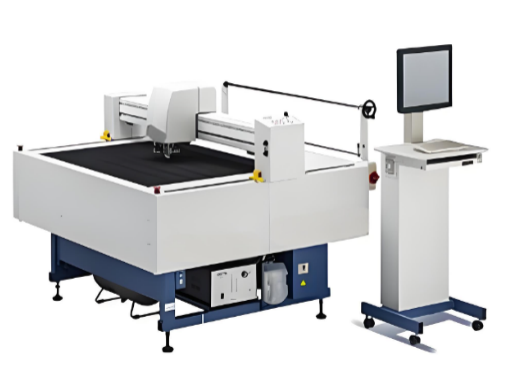

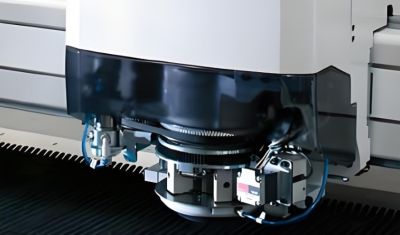

A computerized fabric spreading and cutting machine is an automated system that integrates automatic fabric spreading, intelligent nesting, and precision cutting. It uses a computer control system to efficiently unfold fabric and perform accurate cutting operations. The equipment is characterized by a high level of automation, high cutting precision, and significant savings in labor and material costs, making it widely used in modern garment and textile manufacturing industries.
(1) Garment manufacturing industry: Used for large-scale garment cutting to improve production efficiency and part consistency.
(2) Home textile industry: Applied to cutting bedding, curtains, sofa fabrics, and other home textile materials.
(3) Automotive interior industry: Used for precise cutting of seat fabrics and interior textile materials.
(4) Bags and footwear industry: Used for automated cutting of leather and composite materials.
(5) Industrial material processing: Used for cutting non-woven fabrics, composite materials, and various industrial textiles.
Pen Plotter:
Parameter | Specification |
Effective Area | 44 × 60 inch |
Resolution | 2540 dpi |
Paper Width (Max) | 1680 mm |
Plot Width (Max) | 1600 mm |
Plot Length | Unlimited |
Paper Handling | Roll & Feed / Take-up |
Drawing Paper | 50–110 g |
Paper Sizes | 36"–63" |
Max Roll Diameter | 6.5 inch |
Plotting Speed | 60 cm/sec |
Distance Accuracy | 0.15% or 0.1 mm |
Repeat Accuracy | ≤ ±0.1 mm |
Minimum Character Size | 5 × 5 mm |
Pen Pressure | 50–240 g |
Acceleration | 4 g |
Interface | Serial / Parallel (Auto Detect) |
CPU | 16-bit DSP |
Drive System | Stepping Subdivision Motor |
Power Supply | 110/250 V, 50–60 Hz, 120 W |
Inkjet Plotter:
Parameter | Specification |
Maximum Datum Width | 188 cm |
Effective Print Width | 183 cm |
Print Head Quantity | 2 |
Maximum Printing Speed | 60 m²/hour |
Resolution | 150 dpi |
Print Head Model | 51645A |
Ink System | Repeated Ink Filling |
Positioning Method | Light Curtains |
Control System | Servo + Step Motor |
Paper Type | Paper Roll |
Max Paper Roll Weight | 50 kg |
Paper Weight Range | 25–65 g |
Gross Weight | 95 kg |
Net Weight | 55 kg |
Output | Output Center |
Interface | USB 2.0 |
File Format | HPG / HPGL2 / DMPL / DXF |
Power Voltage | 220V / 110V |
Frequency | 50 / 60 Hz |
Working Temperature | 5°C – 50°C |
Storage Temperature | -15°C – 65°C |
Humidity | 0% – 95% |
Safety Standard | UL1950 |
Auto Cutting Plotter:
Parameter | Specification |
Valid Cutting Area | 1.5 × 1.0 m² |
Weight | 240 kg |
Dimensions | 2.00 × 1.52 × 0.85 m |
Tool Configuration | 1 Blade, 1 Pen |
Media Adhesion | Vacuum |
Max Speed | 1000 mm/s |
Cardboard Thickness | 1.5 mm |
(1) Style Design:
Supply many designs and international standard PANTONE textile color card.
Supply open and powerful design style library, fabric library, part library, etc. to designer for reference.
(2) Pattern Design:
Supply many tools for different pattern design approaches, such as proportion pattern making, formula pattern making, prototype pattern making, intellective structure-line pattern making, convenient pattern making etc., to meet the different requirements of pattern designers of different ages and different habits in pattern making.
(3) Grading:
Supply the most complete and convenient grading approaches, such as Auto-grading, Spec-grading, Equal-grading, Unequal-grading, Copy-grading, Direct-grading after inputting etc.
Divide the graded pattern at will and there is no need to set again before grading, which improves efficiency.
(4) Process Design:
Make complicated manual making process easy, establish enterprise process form model according to text and chart link to strengthen production management.
(5) Abundant graph tools, for example:
Single stitch, double stitch, bridding, covering stitch, zip, button, etc., which makes graph easier, and modifies without any trace.
(6) Data Convert:
No matter where you are e, over a dial up connection with your partner, ECHO can get you to communicate with your partner freely, advance efficiency information transferring and reduce information transferring cost with long-distance data transition and transferring system.
(7) Garment CAM includes: Digitizer, Pen Plotter, Ink Plotter, Cutting Plotter,
(8) Digitizer: It's operated by 16-key orientation, which guarantees accurate position of pattern outline and inside curve.
Parameter | Specification |
Cutting Media | Cardboard, Brown Paper, PE Board, Red Rigid Cardboard, Fiber Cardboard |
Max Cutting Pressure | 15 kgf |
CPU | 16-bit DSP |
Pen Type | Ink, Oil |
Accuracy | < ±0.1% |
Interface | Parallel, Serial |
Memory | 2 MB |
Language | HPGL |
Display Panel | LCD |
Motor | High Precision Step Motor |
Voltage | AC 220V ±20V, 50 Hz |
Fuse | 5 A |
Environment Temperature | -10°C to 0°C |
Humidity | 20% – 80% RH |
Recommended Cardboard | 200–350 g/m² |
Accessories | Desktop Computer and Printer |
One year warranty
