Brand:QINSUNModel:G-FC130IntroductionThe FINISHER CARD (combing machine/final carding machine)
WhatsApp : +86 15601902607
Email : info@qinsun-lab.com
Brand:QINSUN
Model:G-FC130

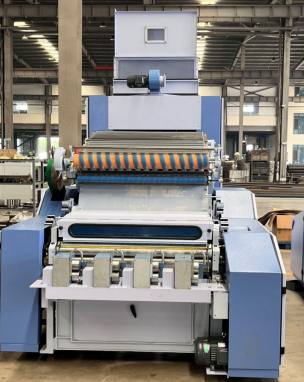

The FINISHER CARD (combing machine/final carding machine) is a key piece of equipment in the textile combing process. It is located after the Breaker Card and is mainly used to comb the fibers more finely, making the fiber sliver more uniform and clean, and providing high-quality raw materials for subsequent drawing and spinning processes.
Item | Specification |
1. Type | 3 1/2 Pair Half Circular Down Striker/4 1/2 Pair Half Circular Down Striker |
2. Uptake | Positively driven - Detachable |
3. Feed | By Roll Former Rolls |
4. Delivery | Roll Former |
5. Working Width | 70 inches |
6. Sliver Width | 5 inches |
7. Delivery Rate | 240 - 300 ft./min. |
8. Draft Range | 10.2 - 19.7 |
9. Main Motor | 7.5 Kw (10HP) |
10. Card Clothing | Wooden Staves / Metalag |
11. Cylinder Speed | 225 rpm |
12. Worker & Stripper | 3/4 Pairs |
13. Feed Stripper | 1 No. |
14. Worker / Stripper Drive | Chain & Sprocket (MJF 01) / Gear-Pulley & Belt (MJF 02) |
15. Cylinder Diameter | 48 inches |
16. Doffer Diameter | 21.3 inches |
17. Feeder Diameter | 6.4 inches |
18. Feed Stripper Diameter | 6.4 inches |
19. Worker Diameter | 10.6 inches |
20. Stripper Diameter | 10.6 inches |
21. Drawing Roller Diameter | 4.0 inches |
22. Delivery Roller Diameter | 5 inches |
23. Conveyor Roller Bare Diameter | 4.5 inches |
One year warranty
