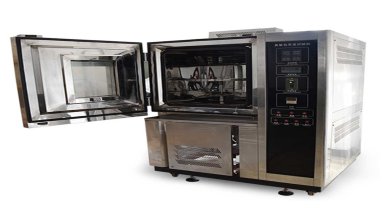

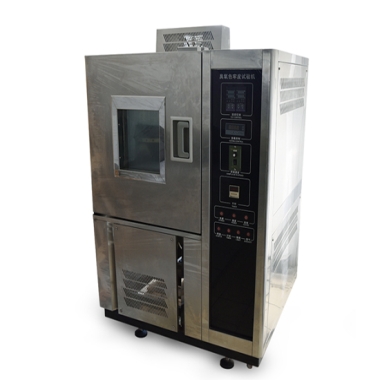

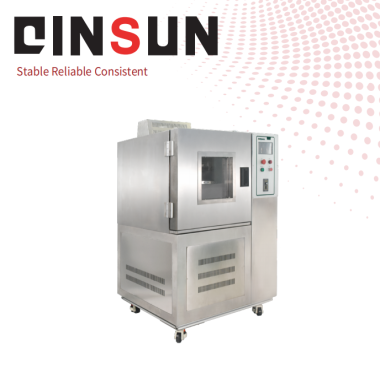

Ozone aging chamber / Ozone chamber

The Ozone Aging Chamber G280 is designed to evaluate the color fastness and durability of textile fabrics when exposed to ozone-rich environments. It simulates long-term aging effects caused by atmospheric ozone, enabling accurate assessment of fabric resistance to discoloration and degradation. The chamber features high-efficiency ozone generation, precise control of ozone concentration, adjustable sample rotation, and safety interlocks for reliable testing.

Application

(1) Knitted Fabrics: Testing ozone resistance and color fastness of cotton, wool, and synthetic knits.

(2) Woven Fabrics: Evaluating color stability and degradation for polyester, nylon, and blended woven materials.

(3) Synthetic Fiber Fabrics: Assessing ozone-induced color fading on fabrics like polyester, polypropylene, and acrylics.

(4) Natural Fiber Fabrics: Testing cotton, silk, wool, and linen for ozone color fastness.

(5) Carpets & Rugs: Conducting ozone exposure tests on nylon carpets and floor coverings.

(6) Protective & Functional Textiles: Evaluating ozone resistance of outdoor fabrics, sportswear, and technical textiles.

(7) Textile R&D and Quality Control: Optimizing dye formulations, surface treatments, and coatings against ozone degradation.

(8) Education and Material Research: Studying environmental aging effects in laboratories and universities.

Standards

(1) AATCC 109-2011 – Colorfastness to Ozone in the Atmosphere under Low Humidities

(2) AATCC 129-2011 – Colorfastness to Ozone in the Atmosphere under High Humidities

(3) ISO 105-G03-1993 – Textiles; Tests for Color Fastness; Part G03: Color Fastness to Ozone

(4) GB/T 11039.3-2005 – Textiles; Tests for Color Fastness; Part 3: Color Fastness to Ozone

(5) JIS L0890 – Test Methods for Color Fastness to Ozone

(6) ASTM D1149 – Standard Test Method for Rubber Deterioration by Ozone

(7) ASTM D1171 – Standard Method for Rubber Deterioration in Ozone

(8) ISO 1431 – Rubber, Vulcanized or Thermoplastic – Resistance to Ozone

(9) DIN 53509 – Rubber, Testing of Ozone Resistance

(10) JIS K 6259 – Rubber; Ozone Resistance Test

(11) GB/T 13642 – Rubber; Ozone Resistance

(12) GB/T 7762-2003 – Rubber; Ozone Aging Test

(13) GB 2951 – Rubber Products; Ozone Resistance

(14) IEC 60811-2-1 – Electric Cables; Test Methods for Rubber Insulation

Features

(1) Multi-functional rotating sample rack accommodates hanging or flat placement for diverse sample shapes and sizes.

(2) High-output ozone generator with closed-loop concentration control ensures precise and stable testing.

(3) Transparent observation window with LED lighting allows monitoring of the test process.

(4) Safety door lock, ozone decomposition catalyst, and negative-pressure exhaust enhance operational safety.

(5) Adjustable sample rotation speed and flow regulation for customized test conditions.

(6) On-site and factory calibration with NIST traceable standards for reliable measurements.

(7) Automatic reminders for ozone generator and catalyst replacement improve maintenance management.

Parameters

Accessories

(1) Rotating sample holder (up to 24 samples)

(2) HMOS ozone concentration sensor

(3) LED observation lights

(4) Ozone decomposition catalyst

(5) Exhaust system components

(6) User manual and calibration guide

Test Procedures

(1) Install fabric samples on the rotating sample holder.

(2) Set desired temperature, humidity, and ozone concentration parameters.

(3) Start ozone generator and fan system, ensuring closed-loop control of ozone concentration.

(4) Monitor the test through the observation window.

(5) Record exposure duration, sample appearance, and any color changes.

(6) Stop the test and safely remove samples for evaluation.

Maintenance Information

(1) Periodically inspect and replace ozone decomposition catalyst.

(2) Calibrate ozone sensor annually or send it to the factory for verification.

(3) Clean the test chamber and sample holder after each test.

(4) Ensure the exhaust system and door interlocks are functioning properly.

(5) Check electrical connections and control panel for proper operation.
