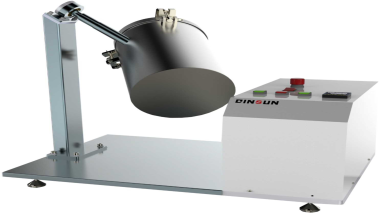

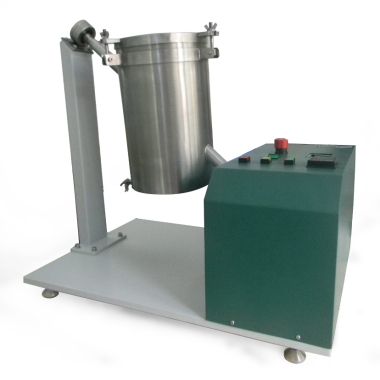

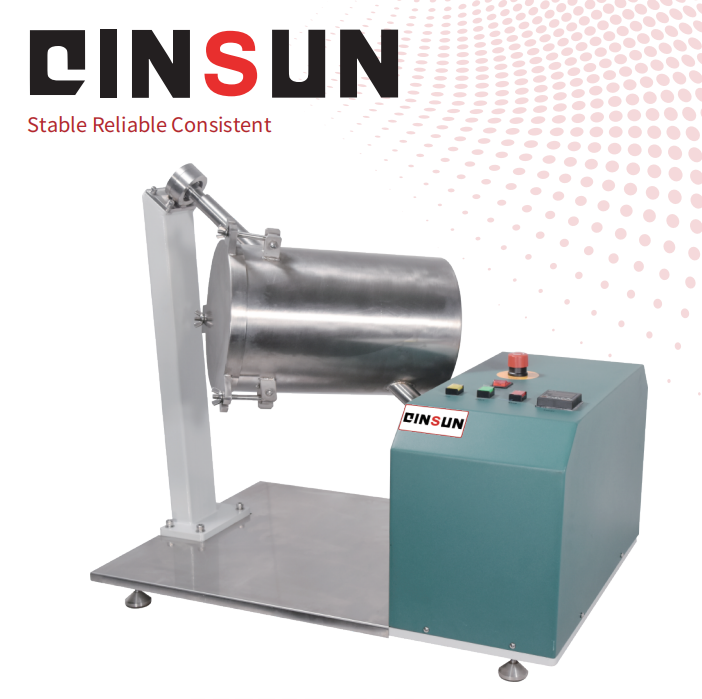

Dry Cleaning & Washing Cylinder

The Dry Cleaning & Washing Cylinder is a precision instrument designed with a stainless-steel rotary chamber, multi-speed drive system, and digital timer. It is used to evaluate textile color fastness to dry-cleaning solvents and chlorinated pool water and is also widely applied for preparing specimens for flammability testing. With stable rotation, corrosion-resistant construction, and consistent performance, it is ideal for professional textile laboratories, quality control centers, and research institutions.

Application

The instrument is used to determine the color fastness of fabrics when exposed to dry-cleaning agents or chlorinated water. It is suitable for apparel textiles, swimwear, performance fabrics, decorative fabrics, and any material requiring resistance evaluation to dry cleaning or pool-water conditions. It also serves as a pre-conditioning device for samples prior to flammability tests.

Standards

(1) AATCC 162 Colorfastness to Water: Chlorinated Pool
(2) 16 CFR Part 1610 Standard for the Flammability of Clothing Textiles
(3) ISO 105-C06 Textiles — Tests for colour fastness — Domestic and commercial laundering
(4) ISO 105-D01 Colour fastness to dry cleaning
(5) GB/T 5711 Textiles — Tests for colour fastness — Colour fastness to dry cleaning

Features

(1) Stainless-steel test chamber with excellent resistance to solvents and chemical solutions
(2) Multi-speed rotary system ensuring smooth and consistent motion
(3) Digital timer for accurate and repeatable test cycles
(4) Brushed stainless-steel surface for durability and easy maintenance
(5) Compact size suitable for various laboratory environments
(6) Stable structure designed to minimize vibration and ensure test accuracy

Parameters

Accessories

(1) Stainless-steel washing cylinder
(2) Digital timing controller
(3) Specimen holders
(4) Hardness solution preparation containers
(5) User manual and calibration documentation
Optional accessories can be supplied based on laboratory requirements.

Test Procedures

(1) Ensure the chamber is clean and free of residue before starting.
(2) Prepare hardness concentrate according to the required standard.
(3) Dilute 51 ml of the hardness concentrate to 5100 ml using distilled or deionized water.
(4) Adjust the solution pH to 7.0 using sodium carbonate or acetic acid if necessary.
(5) Add 5000 ml of the prepared solution into the chamber and set the temperature to 21°C.
(6) Place the test specimen and standard fiber into the cylinder, close the lid, and run the machine for 60 minutes.
(7) Remove the specimen and gently eliminate excess solution.
(8) After testing, clean the chamber and inspect the drive components regularly to maintain long-term performance.
