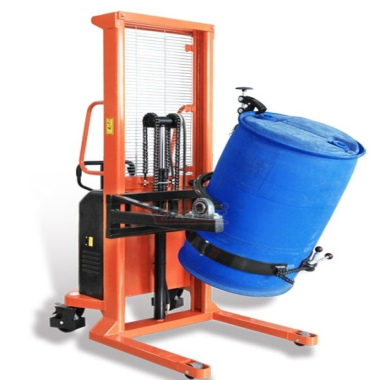

Pneumatic Dual Purpose Pourer/Stacker (Forklift)

Model: STD-200-YJTOperates with or without air supply (flexible usability).Pneumatic liquid-level li

WhatsApp : +86 13816217984

Email : info@qinsun-lab.com

Content

Model: STD-200-YJT

Operates with or without air supply (flexible usability).
Pneumatic liquid-level lifting and dumping.
Manual override for emergencies.
Compact design for easy movement and manual operation.
Explosion-proof electronic scale interface (compatible with drums and grinding tanks).

Type: Pneumatic + Manual Integrated Tipping Machine
Key Features:

Technical Specifications:

Horizontal Position: 1420 mm from ground
Vertical Position: 1300 mm from ground

Rated Pressure: 0.6–0.8 MPa
Working Pressure: 10–12 bar
Air Hose Size: Φ600 mm
Lifting Height:
Barrel Diameter: Standard international oil drum (Φ600 mm)
Fixation Method: 360° rotatable clamping
Lifting Mechanism: Pneumatic + manual adjustment
Dimensions: 1250×950×1850 mm

Customizable Options:

Explosion-proof electronic scale integration.
Custom interfaces for specific barrel types (e.g., grinding tanks).
Model: STD-500CC

Dual-use design: Pneumatic/manual operation (works with or without air supply).
Rated load: 500 kg (customizable for 1000 kg / 1500 kg).
Safety-enhanced design:
Compact and portable (manual push/pull operation).

Anti-slip copper plates on fork contact surfaces.
Reinforced structure for stable lifting.
Type: Pneumatic Dual-Use Stacking Machine (with forks)
Key Features:

Technical Specifications:

Hose size: Φ12–16 mm
Air consumption: 500–980 L/min
Pneumatic (air pressure: 0.6–0.8 MPa)
Manual assist (optional)

Lifting Capacity: 500 kg (base model)
Drive Modes:
Air Supply:
Lifting Height: 1400 mm
Fork Width: 100 mm (max.)
Lifting Stroke: 950 mm

Customizable Options:

Higher load capacity (1000 kg / 1500 kg).
Fork width adjustment (based on customer requirements).
