STD-RCF 5 ROLLING CONTACT FATIGUE MACHINE – 3000 rpm

Introduction

The fatigue lives of nominally identical rolling elements, tested under identical conditions, can be widely different. The principle reason for this is that bearing steels are not homogeneous. The number of repeat tests will depend on the confidence level required, but will rarely be less than ten, and will frequently be twenty, thirty or more.

Description

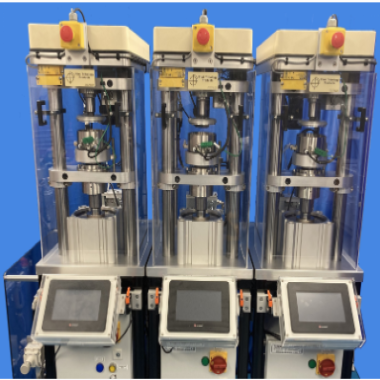

The machine is floor standing and designed to be installed either as a single unit or, more cost effectively, as a multi-unit installation, using a common pneumatic loading system, so that the same load is applied to each test station.

Each station incorporates a PLC, with inputs via touch-screen, for independent control of motor speed and test assembly temperature, plus a vibration sensor and adjustable level trigger circuit, for detecting rolling contact fatigue and stopping the motor.

Load actuators are connected in parallel to a common pneumatic supply, with a manually set precision regulator and a pressure transducer calibrated for load measurement. Manual valves are provided to allow individual actuators to be isolated from the pneumatic circuit, hence removing the load from the associated test station.

Each test station has its own, independently controlled, lubricant circulation system.

The machine installation footprint is kept to a minimum. It is simple to operate, so requires minimal training.
