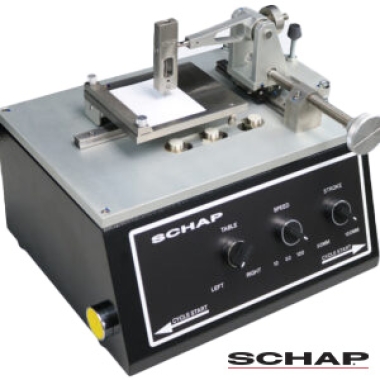

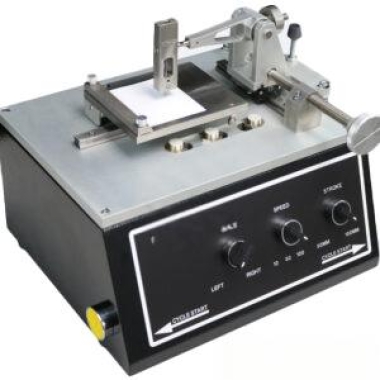

Nissan Scratch Tester
StandardASTM D7027 (Standard Test Method for Scratch Resistance of Polymeric Coatings and Plastics)I
Email: info@standard-groups.com
Content
Standard
- ASTM D7027 (Standard Test Method for Scratch Resistance of Polymeric Coatings and Plastics)
- ISO 1518 (Paints and Varnishes — Determination of Scratch Resistance)
- JIS K 5600-5-6 (Scratch Hardness Test for Coatings)
Product Advantages
- Precision Scratch Analysis
- Proprietary load cell technology (±0.01 N accuracy) captures micro-scratch behavior, critical for coatings and thin films.
- Multi-Material Compatibility
- Tests metals, polymers, ceramics, and coated surfaces with adjustable speed (1–200 mm/s) and load (0.5–50 N).
- Automated Testing Protocols
- Pre-loaded ASTM/ISO/JIS test modes with AI-driven load ramp and scratch pattern optimization.
- High-Resolution Imaging
- Integrated 4K microscope (10–200x magnification) captures scratch morphology in real time.
- User-Centric Design
- 10.1-inch touchscreen interface with multilingual support (English, Japanese, German, Chinese) and one-touch calibration.
Product Features
- Testing Modes:
- Linear Scratch: Single-pass testing for coatings and films.
- Reciprocating Scratch: Multi-cycle abrasion for wear simulation.
- Progressive Load: Automated load increments (0.5–50 N) for critical failure analysis.
- Real-Time Monitoring:
- High-speed data acquisition (10,000 Hz) tracks friction, load, and displacement simultaneously.
- Data Management:
- Cloud-compatible software stores 50,000+ test results and generates ISO/ASTM/JIS-compliant reports.
- Safety & Compliance:
- Overload protection, emergency stop, and CE/UL certification for laboratory safety.
Technical Parameters
| Parameter | Specification |
|---|
| Load Range | 0.5–50 N (±0.01 N accuracy) |
| Speed Range | 1–200 mm/s (±0.1 mm/s accuracy) |
| Scratch Length | 5–100 mm (adjustable) |
| Microscope Magnification | 10–200x (4K resolution) |
| Dimensions (L×W×H) | 800×600×1,200 mm |
| Weight | 150 kg |
| Operating Environment | 15–35°C, ≤85% RH (non-condensing) |
| Power Supply | 220V/110V AC, 50/60Hz, 800W |
Accessories Included
- Scratch Heads:
- 5× diamond indenter tips (Rockwell C geometry).
- 10× spherical stylus (1–10 mm radius).
- Calibration Tools:
- Load cell verifier, scratch depth gauge, and NIST-traceable certificate.
- Sample Fixtures:
- Pneumatic clamps for flat/curved specimens, vacuum chuck for thin films.
- Software Suite:
- AI analytics platform with scratch simulation, ERP integration, and 8-language report generator.
- Safety Bundle:
- Emergency stop, acoustic enclosure, and fume extraction port.
Ideal For:
- Automotive OEMs (paint, trim, and interior coating durability)
- Electronics manufacturers (screen protectors, polymer casing testing)
- Medical device makers (biocompatible coating scratch resistance)
- Research universities (advanced material innovation)
