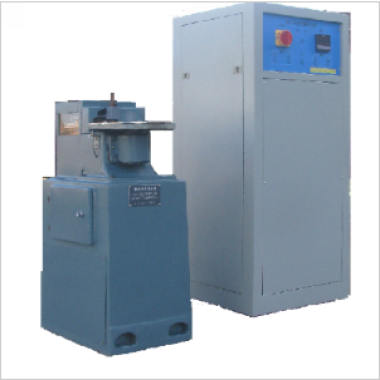

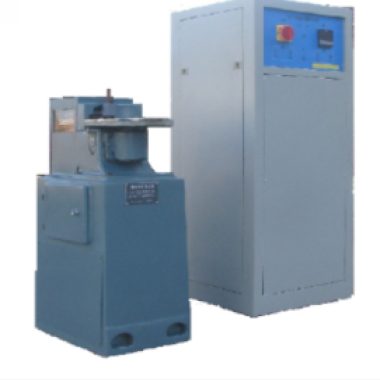

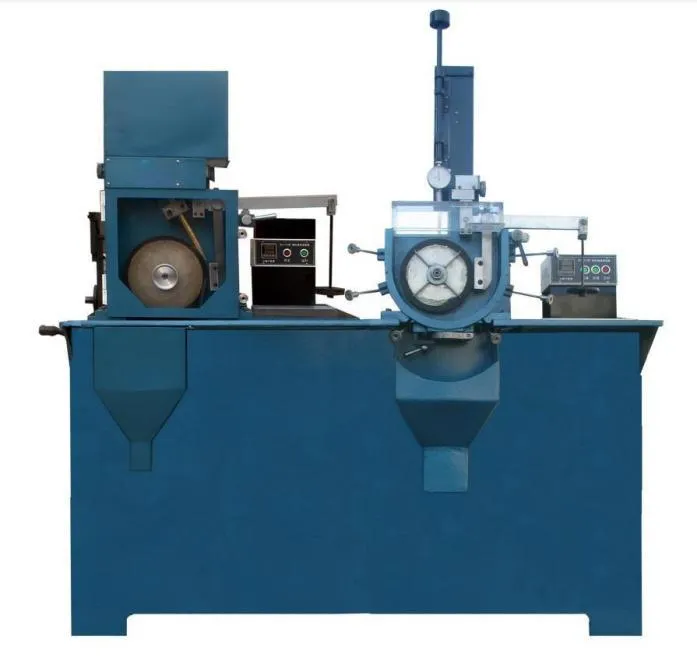

Abrasive Wear Testing Machine

Abrasive wear testing machines are mainly used to evaluate the surface wear performance of materials. They conduct abrasive wear tests on materials by simulating the friction and wear process under real working conditions.

Application

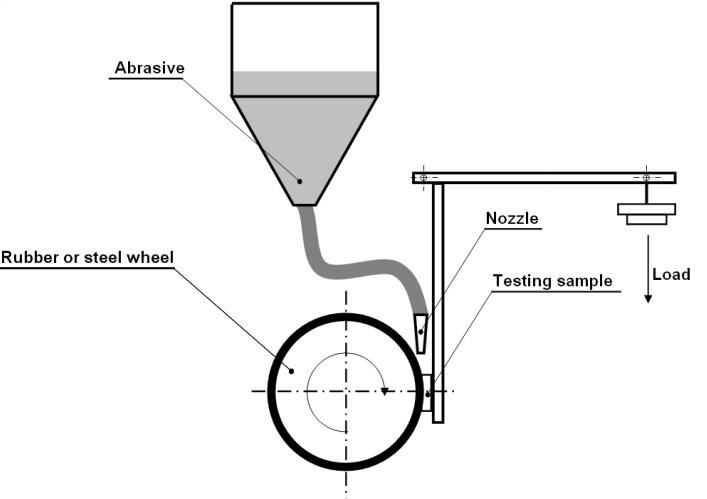

The wet - type rubber wheel abrasive wear testing machine is primarily employed to assess the wear - resistance of metal materials when they are in frictional contact with solids like sand, ores, and sediment. Through these tests, the capabilities of various metal materials to resist abrasive wear can be ascertained, and investigations into the abrasive wear mechanism can be carried out. This empowers the design, production, and scientific research departments related to mining machinery, construction machinery, transportation machinery, agricultural machinery, and so on to choose appropriate metal materials and manufacturing processes.

Standard

(1)ASTM G65 - 04：Standard Test Method for Measuring Abrasion Using the Dry Sand/Rubber Wheel Apparatus

(2)GB/T 3960-1983：Test method for friction and wear of plastics by sliding

Features

This testing machine is composed of two components: the main unit and the control system. The main - unit part comprises the machine base, main shaft and drive system, dead - weight loading system, and specimen clamping device. The control system includes the measurement and control section as well as the display instrument section. The two sections are linked by a control cable

Parameters

Accessoriess

Test rings and blocks, abrasive paper, standard steel balls, test discs, etc.

Test Procedures

Equipment Inspection: Before use, check that the equipment is functioning properly, including the power supply, transmission system, control panel, sensors, and other components.

Sample Preparation: The shape, size, and surface treatment of the sample should meet the standard requirements. The sample must be cleaned before testing to remove surface contaminants and ensure the validity of the experimental results.

Test Parameter Setting: Set test parameters such as load, speed, temperature, and test time to simulate actual working conditions and obtain more representative test data.

Real-time Monitoring: During the test, monitor parameters such as the coefficient of friction and wear in real time and record the data for subsequent analysis.

Equipment Maintenance: After the test, clean and maintain the equipment promptly to ensure its long-term stability and reliability.

FAQ

1. What is an Abrasive Wear Testing Machine?

The Abrasive Wear Testing Machine is a device used to evaluate the resistance of materials, coatings, or components to wear caused by abrasive particles, simulating real-world friction and erosion conditions.

2. How does the abrasive wear test work?

The machine subjects a sample to controlled contact with an abrasive medium (e.g., sand, alumina, or silicon carbide) under a specified load, speed, and motion. Material loss is measured after a defined number of cycles to determine wear resistance.

3. What types of materials can be tested?

It can test metals, ceramics, polymers, composites, coatings, and rubber materials used in automotive, industrial, construction, and aerospace applications.

4. What parameters are measured during testing?

The machine measures wear rate, weight or volume loss, surface roughness changes, friction coefficient, and damage morphology. Some models provide real-time data logging and automated analysis.

5. Why is abrasive wear testing important?

Testing ensures materials and coatings can withstand abrasive environments, improving durability, safety, and lifespan. It helps manufacturers select appropriate materials, optimize surface treatments, and predict maintenance intervals.
