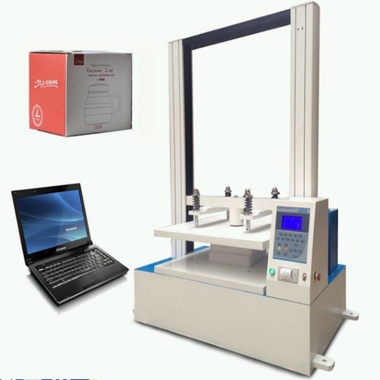

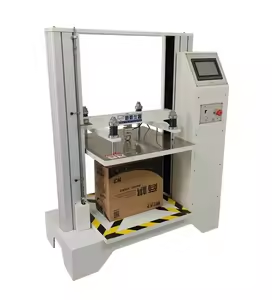

Box Compression Tester

Box Compression Strength Tester Compression Testing Machine with multi-function and high precision is designed to test the compressive strength of standard size corrugated box, or packages and containers made of other material with a compressive strength smaller than 100kN. With advanced mechanical structure of a pair of threaded shafts &guide pillars and imported motor for control, the testing machine has the following salient features: good parallelism, reliable measure precision and high return speed.

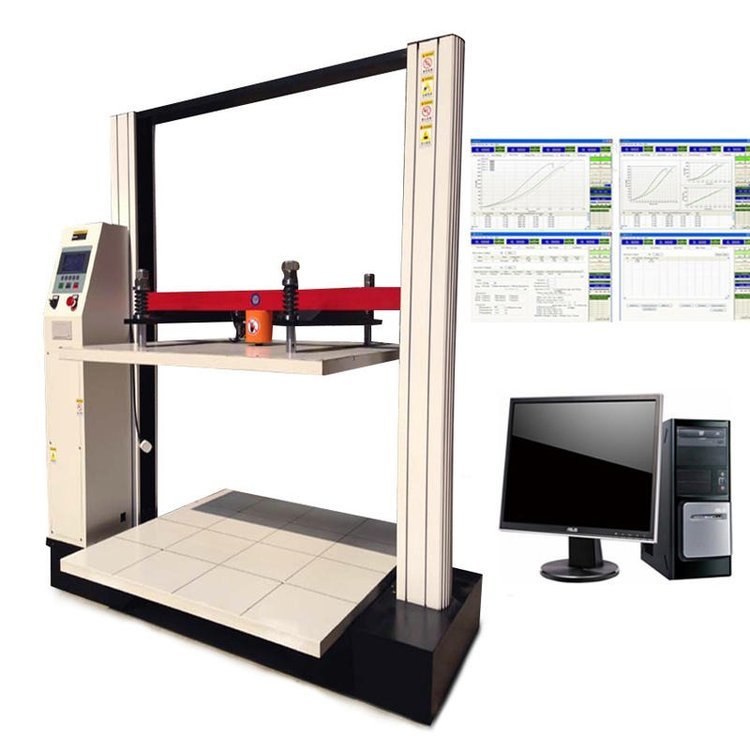

Box Compression Tester (Computer Model) is capable of various functions for all parameters in standards, Such as parametric test, display, memory, statistics and print function; data processing function to gain the statistical result of all parameters directly; and automatic reset and fault diagnosis function and easy operation.

Standard operating mode:

1.Carton strength test: can measure the maximum pressure resistance and displacement of the box;

2. Carton setting test: the overall performance of the box can be detected according to the set pressure and displacement;

3 carton stacking test: according to the requirements of the national standard, the stacking test can be carried out for a specified time.

Reference standard:

1、ISO2872, ISO2874, ISO 12048, ASTM D642, TAPPI T804

2、Design standard :GB/T 4857.4-92; GB/T 4857.3-92

3、Test standard :GB/T4857.4; GB/T4857.16;IS02872; ASTM D642

4、Manufacturing standard :GB/T16491; TAPPI-T804; JIS-Z0212

Product Advantages:

Evaluates Critical Packaging Strength: Directly measures compression and stacking strength, key properties for preventing damage during storage and transport.

Multiple Test Modes: Offers distinct operating modes (strength, setting, stacking) to cover various evaluation needs according to standards.

Standard Compliant: Designed to meet numerous national and international packaging testing standards.

High Accuracy: Provides accurate measurement of force and displacement with specified precision.

Supports Design Optimization: Provides quantitative data essential for improving carton design for enhanced stacking performance and material efficiency.

Versatile Application: Applicable to a wide range of carton sizes and types.

Can conduct tensile, compression, bending, shearing, tearing and peeling test; use PC and interface board for data collection, preservation, processing and printing test result; can calculate max force, yield strength, average peeling force, max deformation, yield point, elastic modulus and other parameters.

Technical parameter:

packaging compression tester Feature：

Strength test

Strength test which belongs to a destructive test is mainly used to measure the deformation when the sample is loaded with maximum pressure or crushing strength.

Constant Value Test

There are two parameters which are to be set in the constant value test: load force value and deformation value. The user can set one or both of them according to the practical requirement. the measure is complete when any parameter reaches the set value.

Stacking Test

Stacking Test is used to check up that whether the sample can endure a constant pressure in a given time period. Set up two parameters: compressive strength and testing time (hour).

when the test starts, the system will check the current pressure at any moment to ensure the set value; the measure is complete when the test time is expired or the deformation value exceeds the set one within testing time.

The overall system is in good parallelism, stationarity and high return speed.
