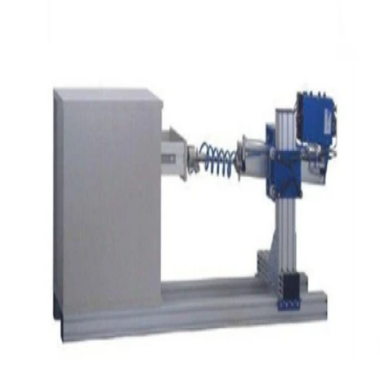

Drawer slide durability testing machine

The Drawer Slide Durability Testing Machine is designed to evaluate the mechanical durability, operational reliability, and service life of drawer slide systems under repeated opening and closing cycles. The equipment simulates long-term daily use by applying controlled reciprocating push–pull motion to drawer slides, enabling accelerated life testing under standardized and repeatable conditions. It is used to identify wear, deformation, functional degradation, and potential failure modes of drawer slide assemblies in accordance with furniture hardware durability standards.

Application

(1) Durability and life cycle testing of furniture drawer slides (ball bearing slides, roller slides, concealed slides) used in residential and commercial furniture

(2) Performance evaluation of cabinet drawer slides (kitchen cabinets, bathroom cabinets, office storage units) under repeated opening and closing cycles

(3) Quality control testing for drawer slide manufacturers (steel slides, aluminum slides, soft-close slides) during production inspection

(4) Type testing and compliance verification of drawer slide systems for furniture hardware certification and standard conformity

(5) Research and development testing of new drawer slide designs, materials, and surface treatments to improve wear resistance and service life

Standards

(1) ANSI/BIFMA X5.5 – Desk Products: Tests for Drawer Durability and Performance

(2) BIFMA X5.5-2008 – Desk Products Durability and Functional Performance Requirements

(3) EN 15338 – Furniture Hardware – Strength and Durability Requirements for Drawer Slides

(4) ISO 7170 – Furniture – Storage Units – Determination of Strength and Durability

(5) QB/T 2454-2013 – Furniture Hardware – Drawer Slide Rails

Features

(1) PLC control system combined with stepper motor drive ensures high repeatability and precise control of test motion

(2) Adjustable reciprocating push–pull speed allows simulation of different usage frequencies and operating conditions

(3) Programmable test counter with automatic shutdown enables unattended long-duration testing

(4) Wide adjustable mounting width with linear bearing structure supports a broad range of drawer slide sizes and types

(5) Multi-station design improves testing efficiency and allows parallel evaluation of multiple samples

Parameters

Accessories

(1) Standard drawer slide mounting fixtures for different slide sizes

(2) PLC touch control panel for parameter setting and monitoring

(3) Electrical control cabinet integrated with motor drive system

Test Procedures

(1) Install the drawer slide sample securely on the mounting fixture and adjust installation width and alignment

(2) Set test parameters including stroke length, reciprocating speed, stop time, and total test cycles on the PLC interface

(3) Start the test and allow the machine to perform automatic reciprocating push–pull motion

(4) Monitor test operation periodically to check sample condition and machine status

(5) After reaching the preset cycle count or sample failure, stop the test and record test results

Maintenance Information

(1) Clean guide rails, fixtures, and working surfaces regularly to prevent dust and debris accumulation

(2) Inspect mechanical transmission components and fasteners periodically for looseness or wear

(3) Lubricate linear bearings and moving parts according to recommended maintenance intervals

(4) Disconnect power supply and store the equipment in a dry environment when not in use for extended periods
